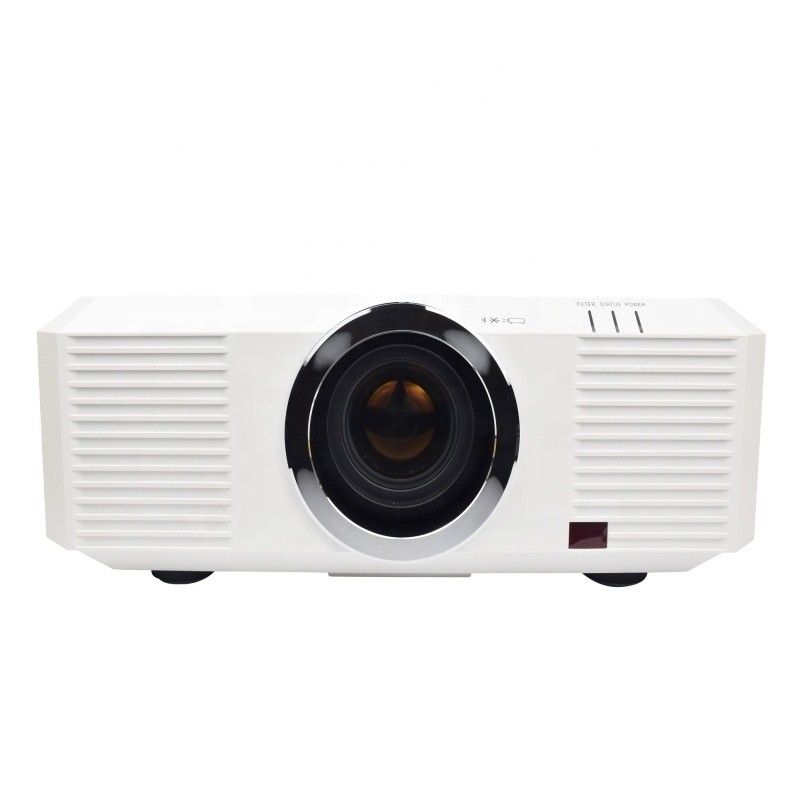

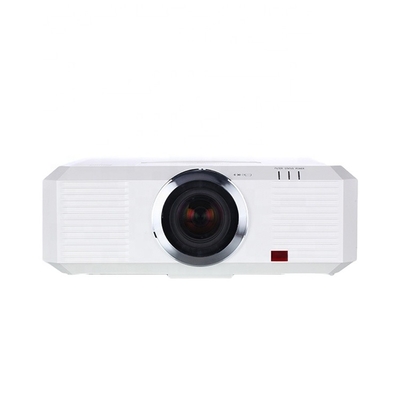

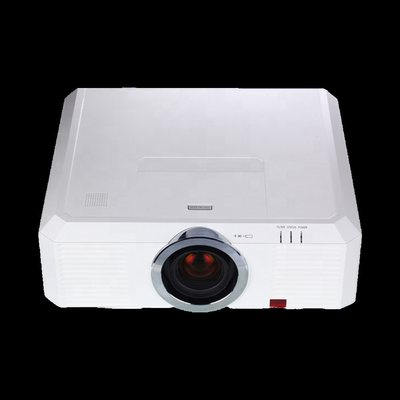

Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building

Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building
Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building

Large Image :  Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building

Product Details:
Place of Origin: China
Brand Name: FLYIN/OEM
Certification: CE,FCC ,ROHS,etc
Model Number: EL-M705U

Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building

Description
Brightness: 10000 Lumens TYPE: Mapping Projector
Chip: 3lcd Light Source: Laser
Native Resolution: WUXGA(1920 X 1200) Lamp Consumption(W) Nomal: 480W
High Light:

OEM Laser Outdoor Projector

,

3lcd Laser Outdoor Projector

,

10000 Lumens Laser 4k Projector

Product Description
Please Contact Supplier
For The Best Advice!
EL-705U

Striking Images , Simple to Use...

From Installation to Operation

-Amazingly High Quality in Every Spect .
Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building 0

Functions &Highlights


Easy to install and easy to adjust
A variety of interchangeable motorized lenses, stepper motor makes the picture adjustment more accurate A variety of interchangeable lenses are available for various screen sizes and installation environments. The stepper motor used in the motorized lens allows users to make more precise adjustments when performing operations such as edge blending and overlaying. The lens can be adjusted through the remote control and web control, and the convenience of adjustment when the projector is installed on the ceiling has been greatly improved.

Support 360° stereo installation
Yosemite series LCD engineering projectors support 360° stereo installation, provide more creative display possibilities, maintain stable image quality, and are suitable for various installation environments.

Standard mirror 1.8x super zoom, strong adaptability
The standard lens adopts 1.8x super zoom, and also has a wide lens shift range and a wider range of installation distances, which is suitable for various harsh installation environments.

Shocking picture quality beautiful presentation
Colorma® color management technology for more balanced display colors Colorma® color management technology is a color management technology specially applied to projection display with more than 18 years of R&D experience accumulated by SZFLYIN. The Yosemite series especially provides three primary colors of red, green and blue for independent white balance adjustment; for its professional engineering application environment, the 705U has a built-in Gamma curve that adapts to various environments to achieve a better color and brightness balance display effect.

The center lens design makes the picture show better brightness and uniformity
The 705U liquid crystal engineering projector adopts a central lens design, which makes the projected image have better color uniformity and brightness uniformity.

High-end 3LCD color display to create stunning image effects
The 705U liquid crystal engineering projector adopts high-end 3LCD color display chip to achieve higher light utilization efficiency, better color uniformity and brightness uniformity, and create a perfect imaging effect, making the picture and image more shocking.

Wide range of applications, flexible and changeable
Built-in positioning image sensor, automatically adjust the viewing angle screen The 705U LCD project projector has its own positioning image sensor, which can identify the position sensor for front projection and ceiling installation, and automatically adjust the viewing angle of the screen.

User-defined screen Customize the startup screen for you
Through the menu, users can set their own personalized pictures of enterprises or individuals as startup animations, which can better display the unique image of enterprises or individuals in external display, breaking the stereotyped startup image in the past. Chinese remote control and custom startup screen, the operation is more intuitive and easier.

Super geometric correction, picture adjustment is easy
705U LCD engineering projector, with manual and automatic vertical keystone correction and manual horizontal keystone correction function, and four corner correction (Corner Keystone), to maximize users to obtain the best imaging effect on various irregular projection surfaces .

IRIS dynamic aperture, the contrast is greatly improved
The 705U LCD project projector adopts the IRIS dynamic aperture contrast enhancement technology, which greatly improves the contrast ratio. Compared with ordinary LCD projectors, it provides the highest contrast ratio, presents pure black, the picture is clear and the layers are distinct, making the light and shadow picture more realistic, and the picture is ready to appear.

Comprehensive consideration of lamp power and lamp life
The 705U LCD Project Projector has comprehensively considered the lamp power and lamp life in the selection of bulbs, and provides solutions for differentiated needs.

Stable performance and consistent quality
Remote control anti-interference, sensitive and convenient control By setting the remote control code (up to 10 groups of IDs), the remote control can be prevented from interfering with multiple projectors. The front and rear remote control receivers of the projector can be set to be enabled or not. The wired remote control interface provides a wired remote control input/output interface, providing one-to-one precise control in complex scenarios where multiple devices are used.

The rear control integrated protective plate makes the projector look natural
The 705U is equipped with an integrally formed rear control protection board, which draws on the design principles of the automobile industry, which can not only avoid the impact of external forces on equipment ports, etc., and improve reliability; it can also be cleverly retracted to improve engineering professionalism; it also makes the overall appearance design natural. Unique ingenuity, highlighting the user's taste

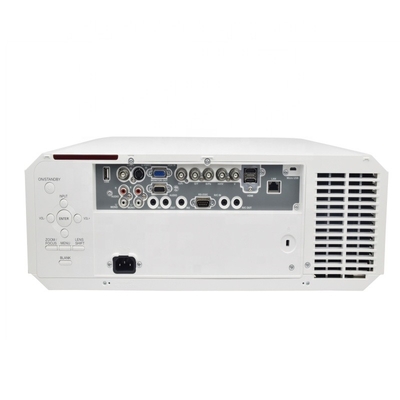

Rich interface, more backup display interface expansion
The 705U LCD project projector can control the projector through the network. It is equipped with a standard RJ45 display interface. The projector with WUXGA configuration supports direct reading of U disk, and can be connected to a wireless adapter to project images from mobile devices such as IOS/Andriod.

HEPA electrostatic dust filter to extend the life of the projector
The high-efficiency HEPA electrostatic dust-proof net can effectively prolong the service life of the projector and ensure the quality of the projector; at the same time, the projector has a built-in self-checking system, which always detects the air flow in and out of the projector, automatically detects whether the filter screen is blocked, and can automatically alarm to prompt cleaning and dust removal. Protect the machine and effectively prolong the service life.
Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building 1
FLYIN Generic
Model#
EL-705U
Quotation
US$3,900.00
FLYIN P/N
110002500
Key parts

Brightness (Typ)
( Ansi Lumens )
10, 000
Brightness (Min)
( Ansi Lumens )
8, 000
Panel
Display Panel
3*0.75''
Display Technology
Liquid Crystal Display
Native Resolution
WUXGA(1920 x 1200)
Lamp
Lamp Consumption(W)
Nomal: 480W
Lamp Lifetime(H)
Normal:5000Hrs/ECO:6000Hrs
Projection
Lens
Zoom/Focus
Powered
Throw Ratio
100"@3.142m
1.55(wide)--2.81(tele)
F
F:1.8~2.6
f
f=24.0mm~43.2mm
Zoom Ratio
1.8x optics
Screen size
40-300 Wide(inch)
Lens Shift V
±70%(Powered)
Lens Shift H
±30%(Powered)
CR
Contrast Ratio(Min)
2000:1 with IRIS @ lens center
Noise
Noise(dB)
Normal:40dB@2m
ECO:34dB@2m
AR
Aspect Ratio
16:10 (Standard)/4:3 (Compatible)
Input
VGA
*1
Audio in
(mini jack,3.5mm)
*2
BNC
*5
Video
*1
Audio in(L/R)
--RCA
*2
S-Video
*1
HDMiI
*2
USB-A
*1
1. Support Memeory viewer
2. WiFi Dongle (Optional Accessory)
Micro USB
*1(Display)
RJ45
*1(Display)
DVI-D
*1
Output
VGA
*1
Audio out
(mini-jack,3.5mm)
*1
Control
RS232
*1
RJ45
*1 (Control)
Micro USB
*1
1. For upgrade
2. Mico-USB Display
Wired Remote(IN)
*1
Wired Remote(OUT)
*1
HD-Base T
*1
Audio
Speaker
1*10W
Temp.&Humidity
Operating Temp.
0℃~40℃(35~ ECO)
Store Temp.
-20℃~~60℃
Oparating Humidity
20%~85%
Storage Humidity
10%~85%
Mechanical Design
Security bar
Yes
Password protections
Yes
Control Panel Lock
Yes
Kenginston Lock
Yes
Ventilation (In/Ex)
Side/Side
Lamp access
Top
Filter access
TopSide
Dust filter
ESD filter
Keystone
Keystone Correction
V: ±30°(auto+manual)
H:±15°(manual)
Pincushion/Barrel Correction
Corner Keystone
LAN Control
LAN Control-RoomView
(Crestron)
Yes
LAN Control-AMX Discovery
Yes
LAN Control-PJ Link
Yes
SW setting
Auto Setup
INPUT SEARCH,AUTO PC,
AUTO Keystone
Audio muting(Muting)
Yes
Filter Cleaning Cycle
100/200/300 hours
Cooling time
60s,90s
High altitude
Yes(1400~2700m)
Signal Power On
Yes
Turn on countdown
Customized-(0S,10S, 30S..)
Auto Ceiling
Yes
D-Zoom
1~33
360° projection
Yes
Others
Edge Blending
Yes
MAX Dimensions
(WxHxD mm)
481*179*418 mm
Net. Weight (KG)
9.98
Packaging Box Dimensions
(WxHxD mm)
620*585*295 mm
Gross. Weight (KG)
~13.2
Additional Features
Network Connectivity
Projectors are equipped with a RJ-45 LAN terminal for remote operation. Additionally, when used with Crestron RoomView™,
integrated control of up to 250 projectors including power on/off control, message display and confirmation of lamp service hours
is possible. EL-705U is equipped with AMX Device Discovery for simplified device management and compatible
with PJLink™.
Flyin 10000 Lumens Large Venue Laser Outdoor Projector Mapping Blending Building 2

Quiet 30dB Operation
Fan noise during projector operation can be distracting during a presentation or videoconference. The EL-705U projector operates
at a significantly low noise level of only 30dB (i.e., in "low lamp" mode). As a result, presentations and conferences can be held
without distracting projector noise in the background.
2-screen mode (Split)Test patternDirect power offClosed caption supportHigh-altitude mode (1,500 to 2,700m)Virtual DICOM modeOSD
menu multilanguage compatibility (20 languages*)
*Existing languages: Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish
Languages added: Dutch, Indonesian, Malaysian, Norwegian, Thai, Turkish, Vietnamese, Arabic
