Large Outdoor Venues 3d Mapping Projector Digital Planetarium Dome 360 Degree

Place of Origin: China
Brand Name: FLYIN/OEM
Certification: CE,FCC ,ROHS,etc
Model Number: EL-M705U
Inquiry Now
Get A Quote
Specifications
Highlight Features

Planetarium Dome 3d Mapping Projector

,

240V 3d Mapping Projector

,

10000 lumens 360 Degree Projector

Brightness:
10000 Lumens
TYPE:
Mapping Projector
Chip:
3lcd
Light Source:
Laser
Native Resolution:
WUXGA(1920 X 1200)
Lamp Consumption(W) Nomal:
480W
Product Description
Large Outdoor Venues 3D Mapping Projector Digital Planetarium Dome 360 Degree
Digital planetarium dome 360 degree projection for large outdoor venues using advanced 3D mapping projector technology.
Please Contact Supplier For The Best Advice!
Model: EL-705U
Striking Images, Simple to Use...
From Installation to Operation
Amazingly High Quality in Every Aspect
EL-705U Digital Planetarium Projector
Key Features & Highlights

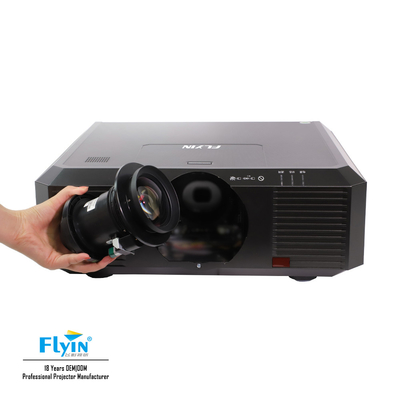

  • Easy Installation & Adjustment: Various interchangeable motorized lenses with stepper motor for precise adjustments. Remote and web control capabilities for ceiling installations.
  • 360° Stereo Installation: Supports 360° installation for creative display possibilities with stable image quality across various environments.
  • Standard 1.8x Super Zoom Lens: Wide lens shift range and extensive installation distance adaptability for challenging environments.
  • Colorma® Color Management: Advanced color technology with 18+ years R&D experience, featuring independent RGB white balance adjustment and environmental Gamma curves.
  • Center Lens Design: Provides superior color and brightness uniformity across projected images.
  • High-End 3LCD Display: Higher light utilization efficiency for stunning image effects with perfect color and brightness uniformity.
  • Built-in Positioning Sensor: Automatically adjusts viewing angle for front projection and ceiling installations.
  • Customizable Startup Screen: Set personalized enterprise or individual startup animations for unique branding.
  • Advanced Geometric Correction: Manual and automatic vertical/horizontal keystone correction with four-corner correction capabilities.
  • IRIS Dynamic Aperture: Significantly enhanced contrast ratio for pure blacks and distinct image layers.
  • Optimized Lamp Performance: Balanced lamp power and life considerations with differentiated solution options.
  • Stable Performance: Remote control anti-interference with multiple ID groups and wired remote control interfaces.
  • Integrated Rear Protection: Automotive-inspired design protects ports while maintaining professional appearance.
  • Comprehensive Connectivity: Network control, RJ45 interface, USB direct reading, and wireless adapter compatibility.
  • HEPA Electrostatic Dust Filter: Extends projector life with automatic airflow monitoring and blockage detection.
Technical Specifications
Display Technology 3LCD Panels x 0.76"
Native Resolution WUXGA / Native 1920 x 1200 Pixels
Max. Computer Input WUXGA / Native 1920 x 1200 Pixels
Max. Video Input 4K
Brightness 10,000 ANSI Lumens
Contrast 40,000:1 Contrast Ratio, Dynamic Video contrast ratio up to 10,000:1 by HDMI
Fan Noise As low as 31 dBa
Aspect Ratio 16:10 Native, 4:3 Compatible
Projection Method Front, Rear, Ceiling, Table Top; Projection Image support horizontal and vertical flip
Weight 15 kg
I/O Connectors Inputs: MHL, computer1,2, S-video, BNC, Audio in 1, Audio in 2, LAN, USB-A, USB-B, mini-USB, Monitor out, Audio out, RS232
Maximum Resolution 4K
Computer Compatibility Standard 1080P(1920x1080), WSXGA+, WXGA+, WXGA(1280x800/1280x768), UXGA, SXGA, XGA, SVGA, VGA, Mac…
Video Compatibility PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080P, 720p)
Displayable Colors 1.07 Billion
Projection Lens Standard lens: F = 1.8 - 2.6, f = 24.0 - 43.2mm, 1.8x, Vertical: ±60° (Powered) Horizontal: ±30° (Powered)
Power Lens Shift U/D 50%; L/R 10%
Lens Optional Short throw lens, Long throw lens, Ultra-short focal-lens, 360-degree wide-angle lens, Spherical Fisheye lens
Throw Ratio 1.44 - 2.60 : 1
Projection Screen Size 40" - 300"
Projection Distance 0.6m - 46.5m (Depending on optional lenses)
Lamp Type/Lamp Life 420W single lamp, 6000/5000 hours (ECO/BRIGHT mode)
Keystone Correction Vertical: ±15° (Auto/Manual) Horizontal: ±15° (Manual), Corner Keystone
Dimensions (W x D x H) 48.0cm x 18.0cm x 42.0 cm (18.8" x 7.0" x 16.5")
Remote Control Full function remote with direct source selecting, wifi, LAN
Power Supply 100-240V, 50-60Hz
Power Consumption 500W BRIGHT mode <5W Standby mode, 480W STD mode < 1W Standby mode
Operating Conditions 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity 90%
Security Kensington Lock, Password Protection
Standard Accessories AC Power Cord, VGA Cable, Remote Control, Quick Start Card, CD User Manual, Warranty Card
Optional Accessories Ceiling Mount Kit, Additional Ultra long Cable
Warranty: Projector 5-Years, lamp six months or 500Hrs
