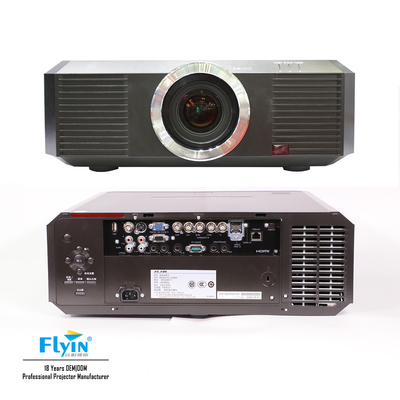

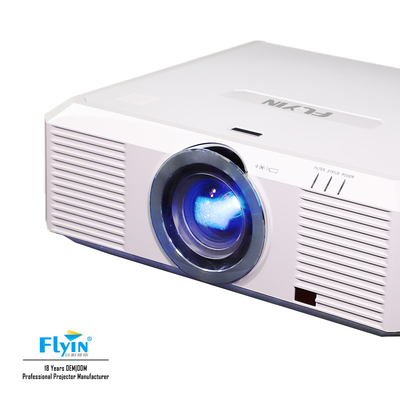

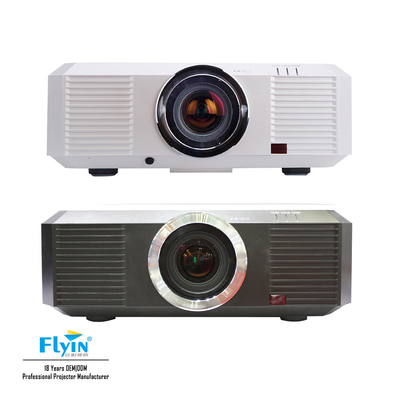

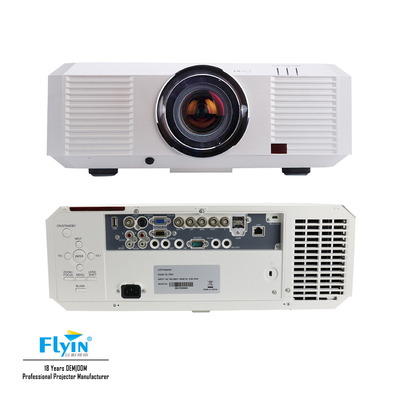

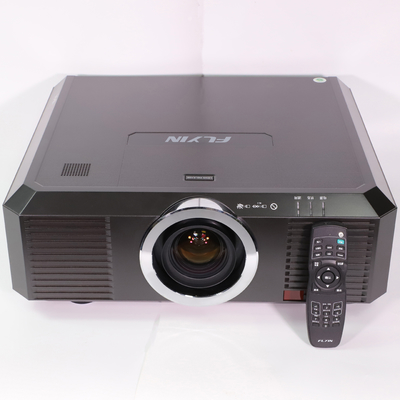

480W Lamp Consumption 3d Outdoor Hologram 3 Lcd Projector 20000 Lumens 4k

480W Lamp Consumption 3d Outdoor Hologram 3 Lcd Projector 20000 Lumens 4k
480W Lamp Consumption 3d Outdoor Hologram 3 Lcd Projector 20000 Lumens 4k 480W Lamp Consumption 3d Outdoor Hologram 3 Lcd Projector 20000 Lumens 4k 480W Lamp Consumption 3d Outdoor Hologram 3 Lcd Projector 20000 Lumens 4k 480W Lamp Consumption 3d Outdoor Hologram 3 Lcd Projector 20000 Lumens 4k 480W Lamp Consumption 3d Outdoor Hologram 3 Lcd Projector 20000 Lumens 4k

Large Image :  480W Lamp Consumption 3d Outdoor Hologram 3 Lcd Projector 20000 Lumens 4k

Product Details:
Place of Origin: China
Brand Name: FLYIN/OEM
Certification: CE,FCC ,ROHS,etc
Model Number: EL-M705U

480W Lamp Consumption 3d Outdoor Hologram 3 Lcd Projector 20000 Lumens 4k

Brightness: 10000 Lumens TYPE: Mapping Projector
Chip: 3lcd Light Source: Laser
Native Resolution: WUXGA(1920 X 1200) Lamp Consumption(W) Nomal: 480W
High Light:

480W 3 Lcd Projector


Hologram 3 Lcd Projector


Outdoor 3D Mapping Projector


Model name: Flyin EL-705U
New Large venue Projector for Screen Picture Joint Together and Large venus Audiovisual solutions.
10,000 ANSI Lumens | 1920x1200 Physical resolution.
With Standard Lens for 1Unit Projector.
Digital cinema room,School,advertising,Outdoor,large conferences.

• Power
Power Supply AC100 to 240V, 50 to 60 Hz
Typical Power Consumption < 520W
Standby Power Consumption < 1W
Acoustic Noise (Typ./Eco.) 29 / 27 dB (Distance ≤ 1.5m)
Operating Temperature 0~40 degrees


Features and functions

Why Choose HLD/LED Lightsource?
**. HLD-RGB 3LED 5,000 Hrs HIGH Lumen light source of New Technology
The very latest High Lumen Density (HLD) technology means the EL-705U is first LED large venue projector to reach new, higher levels of brightness and 50,000 Hrs life. This works by channelling blue LED light into a phosphor rod, where it is discharged as a bright green light. Working in tandem with high brightness red and blue LED lights, it achieves an impressive 10,000 lumens and a 50,000:1 contrast ratio.
This of course results in amazing picture quality, giving you a truly breath-taking image, with crisp, clear, bright colours. LED technology means images will continue to remain vibrant even after thousands of hours of projector use, with none of the deterioration or colour decay you might associate with a lamp projector.
**.A Low Total Cost of Ownership
When investing in a new projector it’s important to consider the total cost of ownership, and not just the initial purchase cost. Replacing traditional mercury lamps for example, can be a major expense.
**.High Reliability – Low Maintenance
There’s no need for a warm-up or cool-down period with an LED projector because LEDs are so much more energy efficient than traditional light sources. You are able to turn it on, turn it off, and turn it straight back on again without fear of damaging the ‘bulb’.
**.With no phosphor wheel, no mercury, no colour wheel and no lamp, LED Projectors not only use less energy than other types of projectors, they create less waste, such as old lenses for instance, making them easier on the environment and cheaper to run.

> Recommended Overview

• Display:
Product type Large Venue Projector
Projection System 3LCD+HLD(High Lumen LED Light)
Display type 0.76” WUXGA LCD Panel x3
Native Resolution WUXGA (1920 x 1200P)
Resolution Support Up to 4K@30Hz (3840x2160)
White Brightness (Lumens) 10,000
Contrast Ratio (dynamic) 50,000:1
COLOR DEPTH 1.07B Color (R/G/B 10bit)
Native Aspect Ratio 16:9 native,Compatible analog 4: 3
Lightsource type HLD (High Lumen LED Light)
Light Source Life 50,000 hours
Light Source Wattage TBD
• Interface
inPut: VGA/Video/Svideo/USB-A/Micro USB/RJ45*1;HDMI/Audio in*2; BNC*5
Output: VGA out/Audio/RJ45/RS232*1,HDBaseT optional
• HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
• Video Compatibility NTSC, PAL, SECAM, SDTV
• External dust cover Yes, Sponge, anti-static level
• 3D Compatibility None

> a wide range of market applications

These high-brightness projectors have a wide range of market applications, the expression of these pictures tells us that the commercial field is their biggest application performance.
In such an environment, the projector must be the best resolution, the best brightness. As well as expensive prices, Flyin offers a wide range of high-brightness projectors in Digital cinema room,School education, advertising, outdoor, large conferences, etc.

> Standard lens support lens shift.

Optional spare lens / Different Projection Throw ratio
a wide variety of lenses from short to long focus zoom lens makes it possible for the projector to be installed in multiple locations. For extra convenience, these lenses can be used for the PR-800 Series. Both zoom and focus are powered as well as the horizontal/vertical lens shift function. also, the projector can be rotated around 360 degrees vertically so that the projector can be easily installed for variety of situations

Product Description


Display Technology 3LCD Panels x 0.76"
Native Resolution WUXGA / Native 1920 x 1200 Pixels
Max. Computer Input WUXGA / Native 1920 x 1200 Pixels
Max. Video Input 4K
Brightness 10,000 ansi Lumens
Contrast 40000:1 Contrast Ratio,Dynamic Video contrast ratio up to 10000:1 by HDMI
Fan Noise As low as 31 dBa
Aspect Ratio 16:10 Native, 4:3Compatible
Projection Method Front, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip
Weight 15 kg
I/O Connectors Inputs:

MHL,computer1,2,S-video,BNC,Audio in 1,Audio in 2,LAN,USB-A,
USB-B,mini-USB,Monitor out,Audio out,RS232

Maximum Resolution 4
Computer Compatibility

Standard 1080P(1920x1080),WSXGA+,WXGA+,WXGA(1280x800/1280x768),UXGA,

Video Compatibility

PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM
(B, D, G, K, K1, L) HD (1080P, 720p)

Displayable Colours 1.07 Billion
Projection Lens Standard lens:

F = 1.8 - 2.6, f = 24.0 - 43.2mm, 1.8x,
Vertical: ±60° (Powered) Horizontal: ±30° (Powered)

Power Lens Shift: U/D 50%; L/R 10%
Lens Optional: Short throw lens,Long throw lens,Ultra-short focal-lens,360-degree wide-angle lens,Spherical Fisheye lens
Throw Ratio 1.44 - 2.60 : 1
Projection Screen Size 40” - 300”
Projection Distance 0.6m - 46.5m (Depanding on optional lenses)
Lamp Type/Lamp Life 420W single lamp, 6000/5000 hours (ECO/BRIGHT mode)
Keystone Correction * Vertical: ±15° (Auto/Manual) Horizontal: ±15° (Manual), Corner Keystone
Dimensions (W x D x H) 48.0cm x 18.0cm x 42.0 cm (18.8” x 7.0” x 16.5”)
Remote Control Full function remote with direct source selecting,wifi, LAN
Power Supply 100-240V, 50-60Hz
Power Consumption 500W BRIGHT mode <5W Standby mode, 480W STD mode < 1W Standby mode
Operating Conditions 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity 90%
Security Kensington Lock, Password Protection
Standard Accessories

AC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual,
Warranty Card

Optional Accessories Ceiling Mount Kit, Additional Ultra long Cable
Warranty Projector 5-Years,lamp six months or 500Hrs
