Laser LCD large Venue Projector
| Main Spec | Projector Type | Liquid Crystal Display 3x0.76”WUXGA | |
|---|---|---|---|
| Chip Size | 3*0.79' | ||
| Native Resolution | WUXGA (1920×1200) | ||
| Brightness | 20,000 Lumens | ||
| Uniformity | 90% | ||
| Contrast | 3000000:1 | ||
| Aspect Ratio | 16:10:Native / 4:3 Compatible | ||
| Light Source | Type | Laser Technology | |
| Life | Standard:20,000 hours Eco Mode:30,000hours | ||
| Projector Lens | Projector Lens | 1.3-3.02:1/2.3x (20000) | |
| Throw Ratio | (0.36~5.50) | ||
| Keystone Correction | H | ±50° | |
| V | ±30° | ||
| Projection Method | Ceiling,Front,Rear | ||

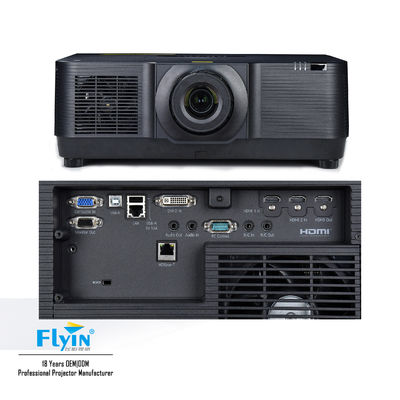

| Input | DVI-Dx1 | ||
| HDMI 1.4(Support HDCP*3)x1 | |||
| 15-pin Mini-Dsubx1 | |||
| HDBaseT*4x1 | |||
| Wired Remote x1 3.5mm | |||
| RJ45×1(LAN Control) | |||
| RS232(D-sub 9pin)x1 | |||
| USB-A*1 (5V/1.5A) USB-B *1 | |||
| Output | 15-pin Mini-Dsubx1 | ||
| HDMI 1.4(Support HDCP*3) OUTx1 | |||
| 3D-Sync x1 | |||
| Power Input( Voltage&Frequency) | 100-240V AC±10%,50/60Hz | ||
| Power Consumption | Normal:1050W,ECO:850W | ||
| Case Material | Molded Plastic | ||
| Standby Power Consumption | ＜0.5W | ||
| Dimension DxWxH | 600*218*503mm | ||
| Net Weight | About 28.5 kg | ||
| Noice | Normal:35dB ECO:33dB | ||
| Working Temperature*5 | High Altitude | 0m-2500m(>1500m Using High Altitude Mode) | |
| Temperature | 5-40℃, | ||
| Humidity | 10%-85% | ||
| Accessories | AAA Battery ×2,Remote Control ×1,Power Cable×1,VGACable ×1,CD-ROM(User Manual)×1, Quick installation manual, warranty card, Lens cover | ||
