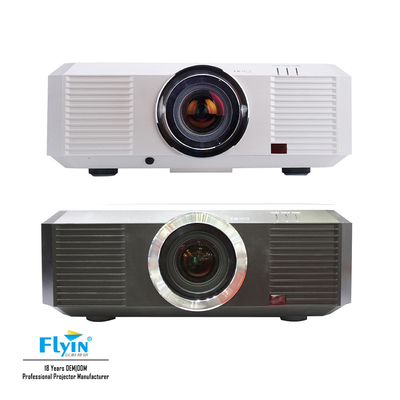

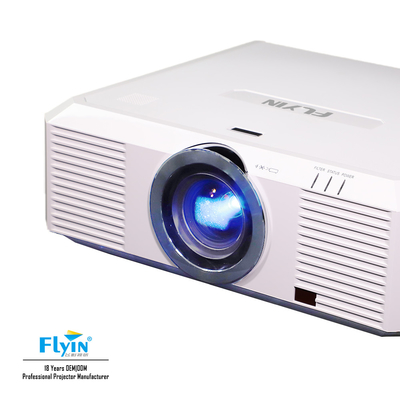

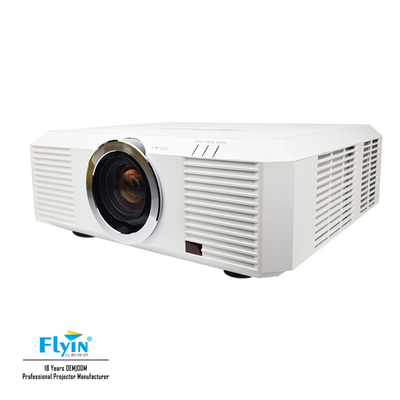

1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping

China Shenzhen Flyin Technology Co.,Limited certification
China Shenzhen Flyin Technology Co.,Limited certification
Customer Reviews
I rarely comment, but this time I had to. I can't spend a lot on a projector and Julia recommended this for me. I received the projector three days after it was shipped and I can't wait to take it apart. It looks even better than the picture. The projection effect is also great. I had a great shopping experience this time, so much thank Julia

—— Madison

SZFLYIN projector is best of quality. It's worth every penny. We use it almost everynight. Picture quality is very best. Vibrant colors and easy-to-adjust angles. We stream everything. Volume and speaker quality are much better than I expected. We projected the film onto our fence, which was 6 feet tall and least 20 feet . This projector is perfect


I'm Online Chat Now

1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping

1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping
1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping 1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping 1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping 1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping 1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping

Large Image :  1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping

Product Details:
Place of Origin: China
Brand Name: FLYIN/OEM
Certification: CE,FCC ,ROHS,etc
Model Number: EL-M705U

1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping

Brightness: 10000 Lumens TYPE: Mapping Projector
Chip: 3lcd Light Source: Laser
Native Resolution: WUXGA(1920 X 1200) Lamp Consumption(W) Nomal: 480W
High Light:

WUXGA Full Hd Multimedia Projector


3lcd Full Hd Multimedia Projector


1080p 3D Mapping Projector

Building 3d Mapping Double H MI Output Original Resolution 1920x1080P,Short Throw 1080p Full Hd Multimedia Projector



Model name: Flyin EL-705U
New Large venue Projector for Screen Picture Joint Together and Large venus Audiovisual solutions.
10,000 ANSI Lumens | 1920x1200 Physical resolution.
With Standard Lens for 1Unit Projector.
Digital cinema room,School,advertising,Outdoor,large conferences.


• Power
Power Supply AC100 to 240V, 50 to 60 Hz
Typical Power Consumption < 520W
Standby Power Consumption < 1W
Acoustic Noise (Typ./Eco.) 29 / 27 dB (Distance ≤ 1.5m)
Operating Temperature 0~40 degrees

Striking Images , Simple to Use...
From Installation to Operation
-Amazingly High Quality in Every Spect .
1920x1080P Short Throw 1080p Full Hd Multimedia Projector Building 3d Mapping 0

Functions &Highlights

Easy to install and easy to adjust

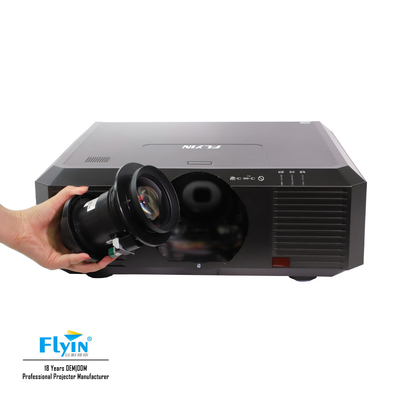

A variety of interchangeable motorized lenses, stepper motor makes the picture adjustment more accurate A variety of interchangeable lenses are available for various screen sizes and installation environments. The stepper motor used in the motorized lens allows users to make more precise adjustments when performing operations such as edge blending and overlaying. The lens can be adjusted through the remote control and web control, and the convenience of adjustment when the projector is installed on the ceiling has been greatly improved.
Support 360° stereo installation
Yosemite series LCD engineering projectors support 360° stereo installation, provide more creative display possibilities, maintain stable image quality, and are suitable for various installation environments.
Standard mirror 1.8x super zoom, strong adaptability
The standard lens adopts 1.8x super zoom, and also has a wide lens shift range and a wider range of installation distances, which is suitable for various harsh installation environments.
Shocking picture quality beautiful presentation
Colorma® color management technology for more balanced display colors Colorma® color management technology is a color management technology specially applied to projection display with more than 18 years of R&D experience accumulated by SZFLYIN. The Yosemite series especially provides three primary colors of red, green and blue for independent white balance adjustment; for its professional engineering application environment, the 705U has a built-in Gamma curve that adapts to various environments to achieve a better color and brightness balance display effect.
The center lens design makes the picture show better brightness and uniformity
The 705U liquid crystal engineering projector adopts a central lens design, which makes the projected image have better color uniformity and brightness uniformity.
High-end 3LCD color display to create stunning image effects
The 705U liquid crystal engineering projector adopts high-end 3LCD color display chip to achieve higher light utilization efficiency, better color uniformity and brightness uniformity, and create a perfect imaging effect, making the picture and image more shocking.
Wide range of applications, flexible and changeable
Built-in positioning image sensor, automatically adjust the viewing angle screen The 705U LCD project projector has its own positioning image sensor, which can identify the position sensor for front projection and ceiling installation, and automatically adjust the viewing angle of the screen.
User-defined screen Customize the startup screen for you
Through the menu, users can set their own personalized pictures of enterprises or individuals as startup animations, which can better display the unique image of enterprises or individuals in external display, breaking the stereotyped startup image in the past. Chinese remote control and custom startup screen, the operation is more intuitive and easier.
Super geometric correction, picture adjustment is easy
705U LCD engineering projector, with manual and automatic vertical keystone correction and manual horizontal keystone correction function, and four corner correction (Corner Keystone), to maximize users to obtain the best imaging effect on various irregular projection surfaces .
IRIS dynamic aperture, the contrast is greatly improved
The 705U LCD project projector adopts the IRIS dynamic aperture contrast enhancement technology, which greatly improves the contrast ratio. Compared with ordinary LCD projectors, it provides the highest contrast ratio, presents pure black, the picture is clear and the layers are distinct, making the light and shadow picture more realistic, and the picture is ready to appear.
Comprehensive consideration of lamp power and lamp life
The 705U LCD Project Projector has comprehensively considered the lamp power and lamp life in the selection of bulbs, and provides solutions for differentiated needs.
Stable performance and consistent quality
Remote control anti-interference, sensitive and convenient control By setting the remote control code (up to 10 groups of IDs), the remote control can be prevented from interfering with multiple projectors. The front and rear remote control receivers of the projector can be set to be enabled or not. The wired remote control interface provides a wired remote control input/output interface, providing one-to-one precise control in complex scenarios where multiple devices are used.
The rear control integrated protective plate makes the projector look natural
The 705U is equipped with an integrally formed rear control protection board, which draws on the design principles of the automobile industry, which can not only avoid the impact of external forces on equipment ports, etc., and improve reliability; it can also be cleverly retracted to improve engineering professionalism; it also makes the overall appearance design natural. Unique ingenuity, highlighting the user's taste

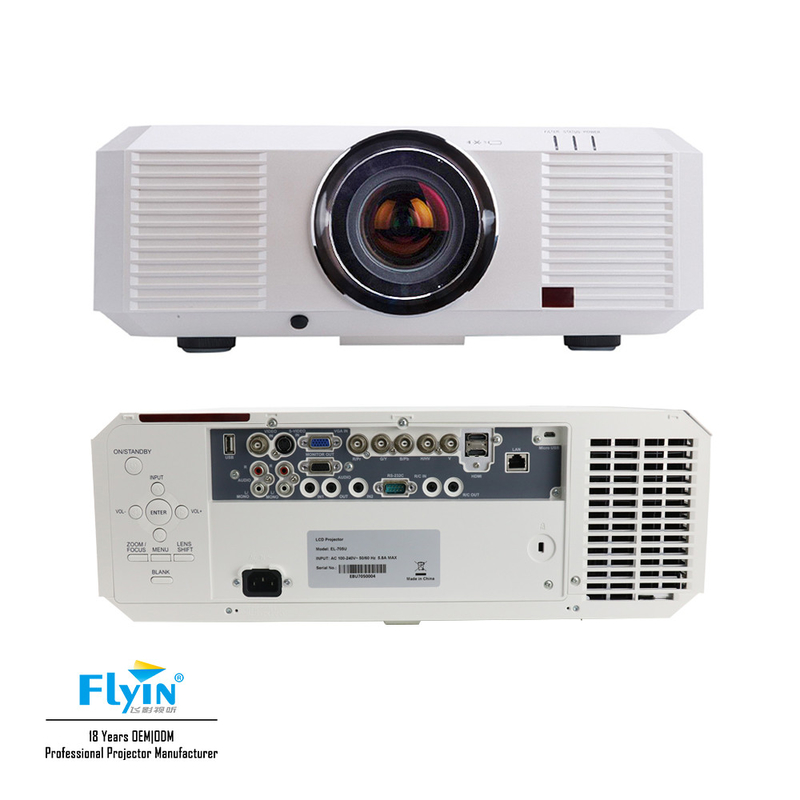

Rich interface, more backup display interface expansion
The 705U LCD project projector can control the projector through the network. It is equipped with a standard RJ45 display interface. The projector with WUXGA configuration supports direct reading of U disk, and can be connected to a wireless adapter to project images from mobile devices such as IOS/Andriod.
HEPA electrostatic dust filter to extend the life of the projector
The high-efficiency HEPA electrostatic dust-proof net can effectively prolong the service life of the projector and ensure the quality of the projector; at the same time, the projector has a built-in self-checking system, which always detects the air flow in and out of the projector, automatically detects whether the filter screen is blocked, and can automatically alarm to prompt cleaning and dust removal. Protect the machine and effectively prolong the service life.
Product Description


Display Technology 3LCD Panels x 0.76"
Native Resolution WUXGA / Native 1920 x 1200 Pixels
Max. Computer Input WUXGA / Native 1920 x 1200 Pixels
Max. Video Input 4K
Brightness 10,000 ansi Lumens
Contrast 40000:1 Contrast Ratio,Dynamic Video contrast ratio up to 10000:1 by HDMI
Fan Noise As low as 31 dBa
Aspect Ratio 16:10 Native, 4:3Compatible
Projection Method Front, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip
Weight 15 kg
I/O Connectors Inputs:

MHL,computer1,2,S-video,BNC,Audio in 1,Audio in 2,LAN,USB-A,

USB-B,mini-USB,Monitor out,Audio out,RS232

Maximum Resolution 4
Computer Compatibility

Standard 1080P(1920x1080),WSXGA+,WXGA+,WXGA(1280x800/1280x768),UXGA,


Video Compatibility

PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM

(B, D, G, K, K1, L) HD (1080P, 720p)

Displayable Colours 1.07 Billion
Projection Lens Standard lens:

F = 1.8 - 2.6, f = 24.0 - 43.2mm, 1.8x,

Vertical: ±60° (Powered) Horizontal: ±30° (Powered)

Power Lens Shift: U/D 50%; L/R 10%
Lens Optional: Short throw lens,Long throw lens,Ultra-short focal-lens,360-degree wide-angle lens,Spherical Fisheye lens
Throw Ratio 1.44 - 2.60 : 1
Projection Screen Size 40” - 300”
Projection Distance 0.6m - 46.5m (Depanding on optional lenses)
Lamp Type/Lamp Life 420W single lamp, 6000/5000 hours (ECO/BRIGHT mode)
Keystone Correction * Vertical: ±15° (Auto/Manual) Horizontal: ±15° (Manual), Corner Keystone
Dimensions (W x D x H) 48.0cm x 18.0cm x 42.0 cm (18.8” x 7.0” x 16.5”)
Remote Control Full function remote with direct source selecting,wifi, LAN
Power Supply 100-240V, 50-60Hz
Power Consumption 500W BRIGHT mode <5W Standby mode, 480W STD mode < 1W Standby mode
Operating Conditions 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity 90%
Security Kensington Lock, Password Protection
Standard Accessories

AC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual,

Warranty Card

Optional Accessories Ceiling Mount Kit, Additional Ultra long Cable
Warranty Projector 5-Years,lamp six months or 500Hrs
