20000 Lumens 3lcd Laser 3d Holographic Projector Videos Mapping

Place of Origin: Shenzhen,China
Brand Name: FLYIN
Certification: CE,FCC,ROHS
Model Number: EL-M906U
Minimum Order Quantity: 1 pcs
Price: USD 11800-13999 /PCS
Packaging Details: Remote Control ×1,Power Cable×1,VGACable ×1,CD-ROM(User Manual)×1, Quick installation manual, warranty card, Lens cover
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, T/T, Western Union,
Supply Ability: 500 PCS Per Month
Inquiry Now
Get A Quote
Specifications
Highlight Features

3lcd Laser 3d Holographic Projector

,

20000 Lumens 3d Holographic Projector

,

100V 3D Mapping Projector

Features:
Projection Up To 500"
Brightness:
20000 Lumens
Purpose:
Videos Mapping
Type:
3LCD Laser Technology
Contrast Ratio:
3000000:1
Screen:
Up To 500" Super Big
Product Description
20000 Lumens 3LCD Laser 3D Holographic Projector Videos Mapping
EL-906U
Ultra realistic image, ultra-high brightness 20000 lumens. From installation to operation, amazingly high quality in every aspect.
Key Features
20000 Lumens Ultra High Brightness
3LCD Laser Technology
The new native 3LCD display chip with high contrast has better filling rate. Combined with dynamic black contrast enhancement technology, it provides a high dynamic contrast of 3000000:1, improves the clarity, detail performance and gray level of the image, and makes the picture colorful and clear. With laser light source, the image quality can be fully improved and restored.
Powerful Geometric Correction Function
Supports horizontal and vertical trapezoidal correction and quadrangular/hexagonal correction of the picture. Multi-point correction and arc correction can easily realize arc, corner and other special-shaped projection and multiple superimposed applications.
Native WUXGA Resolution Support 4K Videos Playback
WUXGA's native physical resolution can better meet the needs of ultra clear projection. Even large-scale projection can also show lifelike image effects.

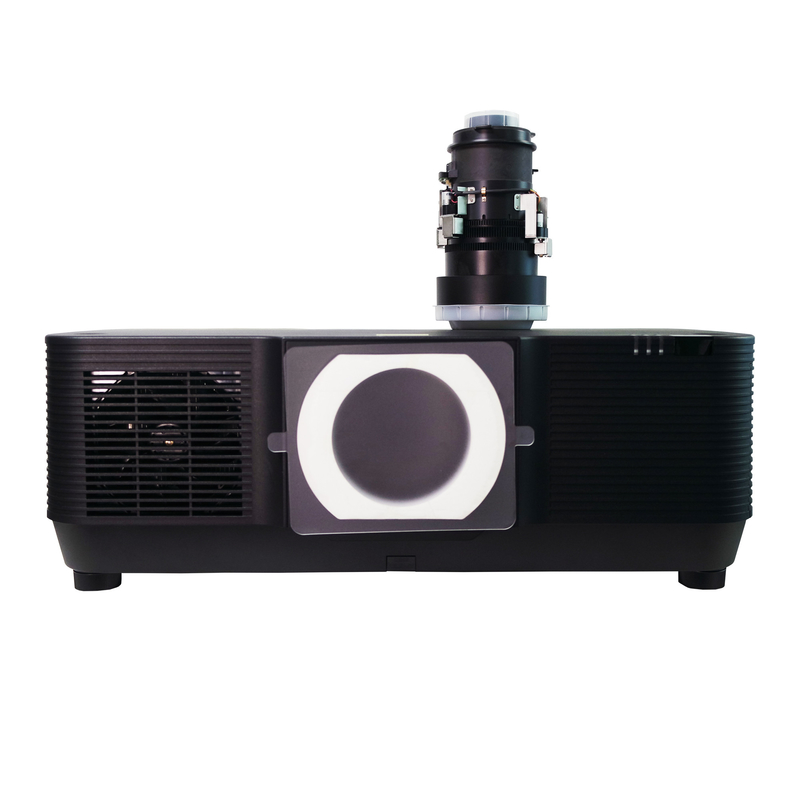

Lens Replaceable
Projector lens replacement illustration
HDMI Output Interface with Loop In and Loop Out
HDMI loop in and loop out, multiple superposition and other wiring applications are simple and convenient.
HD BaseT & SDI Interface
The standard HD BaseT interface can remotely receive HDMI, RS232C and network control signals from more than 5 types of network cables. Realize 100 meter long-distance transmission of Full HD video signals and control signals, which is easy to install and stable and reliable signal transmission. Equipped with HDMI interface loop in and loop out, multiple superimposed, more convenient for application.
Input/Output Interfaces
  • DisplayPort Version 1.3
  • HDMI 2.0 (x2) with HDCP 2.2
  • Computer RGB in (x2, 15-pin D-Sub)
  • RS-232C Serial Port
  • USB (Type A, for accessory power, mouse, service)
  • Wired LAN (RJ-45)
  • HD Base T In (RJ-45)
  • HD Base T Out (RJ-45)
  • Audio in (3.5 mm)
  • Audio out (3.5mm)
  • 3D Synchronization (mini DIN 3 pin)
  • Remote Control extension (3.5mm)
Specifications
Main Spec Details
Projector Type Liquid Crystal Display 3x0.76"WUXGA
Chip Size 3*0.79"
Native Resolution WUXGA (1920×1200)
Brightness 20,000 Lumens
Uniformity 90%
Contrast 3000000:1
Aspect Ratio 16:10 Native / 4:3 Compatible
Light Source Type Laser Technology
Light Source Life Standard: 20000 hours, Eco Mode: 25000 hours
Projector Lens 1.3-3.02:1/2.3x (20000)
Throw Ratio (0.36~5.50)
Keystone Correction H ±50°
Keystone Correction V ±30°
Projection Method Ceiling, Front, Rear
Power Input 100-240V AC±10%, 50/60Hz
Power Consumption Normal: 850W, ECO: 750W
Case Material Molded Plastic
Standby Power Consumption <0.5W
Dimension (DxWxH) 600*218*503mm
Net Weight About 28.5 kg
Noise Normal: 35dB, ECO: 33dB
Working Temperature High Altitude: 0m-2500m (>1500m Using High Altitude Mode)
Temperature: 5-40℃
Humidity: 10%-85%
Accessories Remote Control ×1, Power Cable×1, VGA Cable ×1, CD-ROM(User Manual)×1, Quick installation manual, warranty card, Lens cover
Overall Rating
5.0
Based On Recent Reviews
Rating Snapshot
5
100%
4
0
3
0
2
0
1
0
All Reviews
W
William from Algeria
Dec 23.2025
This engineering projector is perfectly suited to professional needs. It offers multiple lens options, flexible projection distance and size to adapt to different venues, independent color correction, edge blending and other functions. It is easy to install and debug, and provides a perfect user experience for large events and exhibition halls. The 3-year warranty gives me peace of mind.
J
James from Brazil
Nov 5.2025
After using the FLYIN projector for a while, what impresses me most is its durability. The laser light source has a lifespan of over 30,000 hours, meaning you'll almost never need to replace consumables. It also operates quietly, has excellent heat dissipation, and doesn't experience image dimming or stuttering even after prolonged use—it offers exceptional value.
P
Philippe from France
Oct 10.2024
Projecteur laser 20000 lms, cartographie 3D, fonctionne parfaitement ; very nice !
