20000 Lumens 3D Mapping Projector 3LCD Laser Large Outdoor Venue 4k

Place of Origin: Shenzhen,China
Brand Name: FLYIN/NEC
Certification: CE,FCC,ROHS
Model Number: PL-WU20K
Minimum Order Quantity: 1 pcs
Price: USD 11800-13999 /PCS
Packaging Details: AAA Battery ×2,Remote Control ×1,Power Cable×1,VGACable ×1,CD-ROM(User Manual)×1, Quick installation manual, warranty card, Lens cover
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, T/T, Western Union,
Supply Ability: 500 PCS Per Month
Inquiry Now
Get A Quote
Specifications
Highlight Features

Holographic 3D Mapping Projector

,

4k 3D Mapping Projector

,

20000 Lumens 7D Holographic Projector

Features:
Projection Up To 500"
Brightness:
20000 Lumens
Native Resolution:
WUXGA (1920×1200)
Type:
3LCD Laser Technology
Contrast Ratio:
3000000:1
Screen:
Up To 500" Super Big
Product Description
20000 Lumens 3D Mapping Projector 3LCD Laser Large Outdoor Venue 4K
EL-M906U
Photorealistic Images, Simple to Use
From Installation to Operation
Amazingly High Quality in Every Aspect

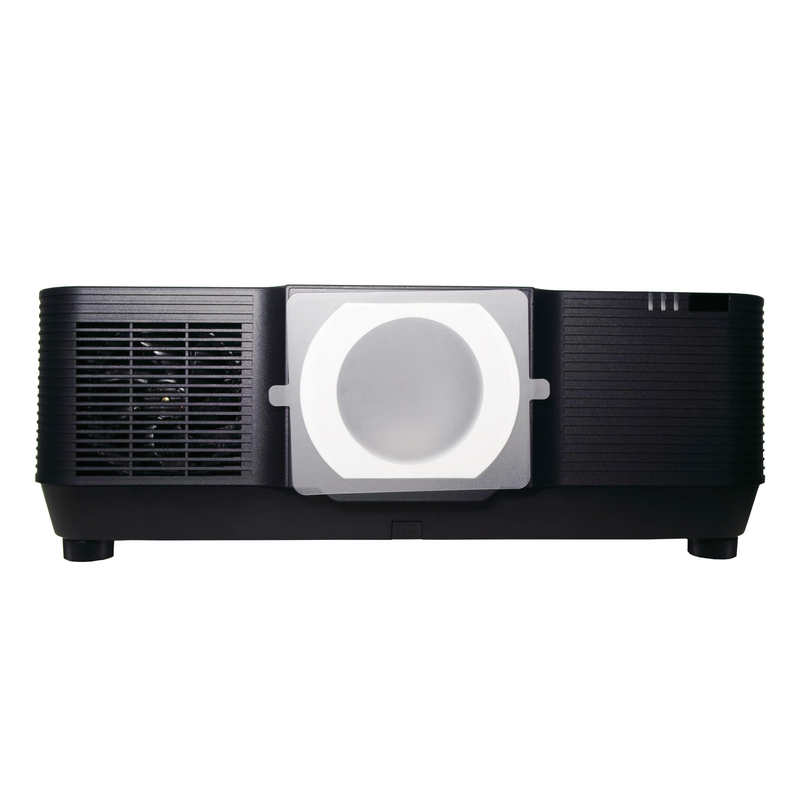

EL-M906U 3D Mapping Projector Front View
Key Features & Technology
Liquid Crystal Laser Phosphor Technology

Independent control design of two laser light sources significantly improves laser utilization and optimizes yellow control to enhance red and green performance. Inorganic liquid crystal panel and fluorescent wheel ensure heat resistance and anti-aging, providing stable high-brightness output with over 20,000 hours lifespan.

High-quality LCD WUXGA UHD Panel

0.76*3LCD WUXGA liquid crystal display technology supports 4K signal input with excellent performance in image noise reduction and dynamic frame insertion. Independent color sensor control technology ensures balanced color output, exquisite picture quality, and consistent light source color performance.

Ultra-quiet Air Cooling Technology

Dual-side air intake system creates spiral airflow across the LCD panel for even heat dissipation, extending LCD panel and polarizer lifespan while reducing fan noise.

Advanced Design Features
  • Airtight Internal Circulation Dust-proof Design: Fully sealed optical engine with dual-channel internal/external airflow circulation cooling technology
  • Advanced Color Correction: Six-axis color independent correction technology for vivid picture presentation
  • Multiple Picture Correction Functions: Supports horizontal/vertical ±30° keystone correction, four-corner correction, six-point correction, and curved surface projection
  • Memory Function Lenses: Up to 6 types of memory function lenses available with wide lens shift range
  • 360° Free Rotation Installation: Horizontal and vertical omnidirectional installation support
  • Network Management: Supports "CRESTRON VIEW" and "PJLINK" for remote monitoring
  • USB Direct Reading: Offline projection capability without laptop requirement
Projector Interface Panel and Connections
Technical Specifications
Specification Details
Projector Type Liquid Crystal Display 3x0.76"WUXGA
Chip Size 3*0.79"
Native Resolution WUXGA (1920×1200)
Brightness 20,000 Lumens
Uniformity 90%
Contrast 3,000,000:1
Aspect Ratio 16:10 Native / 4:3 Compatible
Light Source Type Laser Technology
Light Source Life Standard: 20,000 hours / Eco Mode: 25,000 hours
Throw Ratio 0.36~5.50
Keystone Correction Horizontal: ±50° / Vertical: ±30°
Power Consumption Normal: 850W / ECO: 750W
Dimensions 600×218×503mm
Net Weight Approximately 28.5 kg
Noise Level Normal: 35dB / ECO: 33dB
Input/Output Interfaces
  • DVI-D ×1
  • HDMI 1.4 (Support HDCP*3) ×1
  • 15-pin Mini-Dsub ×1
  • HDBaseT*4 ×1
  • Wired Remote 3.5mm ×1
  • RJ45 (LAN Control) ×1
  • RS232 (D-sub 9pin) ×1
  • USB-A (5V/1.5A) ×1
  • USB-B ×1
  • 3G-SD ×1 (Optional)
  • HDMI 1.4 OUT ×1
  • 3D-Sync ×1
Operating Conditions & Accessories

Working Environment: High Altitude: 0m-2500m (>1500m Using High Altitude Mode) | Temperature: 5-40℃ | Humidity: 10%-85%

Included Accessories: AAA Battery ×2, Remote Control ×1, Power Cable ×1, VGA Cable ×1, CD-ROM (User Manual) ×1, Quick installation manual, warranty card, Lens cover

Optional Accessories for EL-M906U Projector
Overall Rating
5.0
Based On Recent Reviews
Rating Snapshot
5
100%
4
0
3
0
2
0
1
0
All Reviews
W
William from Algeria
Dec 23.2025
This engineering projector is perfectly suited to professional needs. It offers multiple lens options, flexible projection distance and size to adapt to different venues, independent color correction, edge blending and other functions. It is easy to install and debug, and provides a perfect user experience for large events and exhibition halls. The 3-year warranty gives me peace of mind.
J
James from Brazil
Nov 5.2025
After using the FLYIN projector for a while, what impresses me most is its durability. The laser light source has a lifespan of over 30,000 hours, meaning you'll almost never need to replace consumables. It also operates quietly, has excellent heat dissipation, and doesn't experience image dimming or stuttering even after prolonged use—it offers exceptional value.
P
Philippe from France
Oct 10.2024
Projecteur laser 20000 lms, cartographie 3D, fonctionne parfaitement ; very nice !
