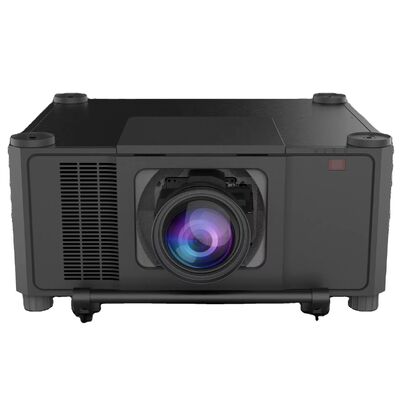

FL-S3206U 32000 Lumens 3LCD Laser Projector
The Flyin FL-S3206U is a brand-new 3LCD laser projector engineered for large venue applications, delivering extraordinary 32,000 lumens brightness to redefine professional projection standards.
Extreme Brightness & Light Source
- 32,000 ANSI lumens (full power mode)
- Dual-color laser light source (blue + red) for superior colour performance
- Ultra-long laser lifespan: 20,000 hours (normal) / 30,000 hours (ECO)
Professional Image Quality
- WUXGA (1920 x 1200) native resolution
- 3LCD liquid crystal display technology
- 3000:1 contrast ratio
- 90% brightness uniformity (JBMA standard)
- Native 16:10 aspect ratio, compatible with 4:3 / 16:9 / 16:6
Flexible Installation
- 1.24-2.01:1 throw ratio (@100 inches)
- Motorized zoom and focus
- Lens shift: vertical ±65%, horizontal ±25%
- 6-corner geometry correction plus pincushion/barrel correction
- 360° projection capability
Comprehensive Connectivity
- 2x HDMI 1.4 input + 1x HDMI 1.4 output
- HDBaseT, DVI-D, VGA
- RJ45 network control (Crestron 1.0 compatible)
- DMX512 control interface
- Optional 3G-SDI
Intelligent Control
- 26-language OSD menu
- LAN control / AMX discovery / PJ Link
- Auto setup / signal search / auto PC detection
- Edge blending and lens position memory
Technical Specifications
| Parameter |
Specification |
| Brightness |
32,000 Lumens |
| Resolution |
WUXGA (1920 x 1200) |
| Contrast Ratio |
3000:1 |
| Light Source |
Dual-Color Laser (Blue + Red) |
| Laser Lifespan |
20,000-30,000 hours |
| Throw Ratio |
1.24-2.01:1 |
| Power Consumption |
1920W (Max) / 1555W (ECO) |
| Noise Level |
41dB |
| Weight |
38.7KG (Net) / 46KG (Gross) |
| Dimensions |
655 x 311 x 558 mm |
Ideal Applications
Large conference halls and auditoriums, theaters and performing arts centers, museums and exhibition halls, cinemas and large-scale events, university lecture halls and sports venues.
FAQS
Q1. DLP vs LCD projectors — which is better for large venues?
Both technologies have their strengths. The FL-S3206U adopts 3LCD liquid-crystal technology, which reproduces smooth, accurate colour without the DLP “rainbow effect” and maintains 90% brightness uniformity. That combination makes it especially reliable for large venues and multi-projector edge-blending arrays.
Q2. Is the FL-S3206U a good projector for gaming or high-motion content?
Yes. With native WUXGA (1920×1200) resolution, HDMI 1.4 input/output, HDBaseT and low-latency signal processing, the FL-S3206U delivers sharp, detailed images for high-motion content, while its 32,000 ANSI lumens keep the picture vivid even on very large screens.
Q3. Short throw vs long throw projectors — which one do I need?
Short-throw units suit tight rooms, while long-throw units suit large venues and big screens. The FL-S3206U uses a 1.24–2.01:1 throw ratio with motorized zoom/focus and six optional lenses (lens shift V±65% / H±25%), so it adapts flexibly to auditoriums, theatres and domes instead of being locked to one mounting distance.
Q4. Which projector screen types are compatible?
The FL-S3206U works with fixed-frame, portable, front/rear screens and gauze/mesh or water screens. Its 6-corner geometry correction, pincushion/barrel correction and built-in edge blending also allow direct projection onto curved, irregular or non-screen surfaces such as building facades and domes.
Q5. How do I set up an outdoor movie or projection show?
For outdoor use, brightness and reliability are critical. The FL-S3206U’s 32,000 ANSI lumens resist ambient light, while its sealed dust-proof filter-free design, 0–45°C operating range and high-altitude support up to 3,640 m allow stable 7×24 continuous operation. DMX512 and HDBaseT support easy integration with media servers and stage-lighting systems.
Q6. 1080p vs 4K projectors — do I need 4K?
For large-venue and mapping projects, brightness and colour consistency usually matter more than pixel count. The FL-S3206U offers native WUXGA (1920×1200) resolution — above standard 1080p — combined with 32,000 lumens and 3,000,000:1 contrast, delivering high perceived detail across very large images where a lower-brightness 4K unit would struggle.
Q7. Which projector brands can I trust for professional projects?
For engineering-grade installations, choose brands with proven large-venue hardware and OEM/ODM support. The FL-S3206U is a Flyin professional engineering laser projector, backed by CB IEC 62368-1, cTUVus, FCC, CE-RED, CE-ERP and EMC Class A certifications, and supports project solutions, sample testing and OEM customization.
Q8. Brightness vs contrast ratio — which matters more?
For large venues and outdoor shows, brightness is the deciding factor: without enough lumens, contrast is lost to ambient light. The FL-S3206U pairs an exceptional 32,000 ANSI lumens with a 3,000,000:1 contrast ratio, so both punch and depth are preserved even in bright, large-scale environments.
