Flyin Kommander TS Series 4K Multimedia Playback Control Server Stage Theater LED Video Wall for Multi-Screen Synchronization

The Flyin Kommander TS Series is a flagship multimedia playback control server engineered for the most demanding professional AV environments. Purpose-built for stage productions, immersive theater experiences, large-scale conference events, and LED video wall installations, it serves as the central command hub for synchronized multi-display playback. Its dual redundant architecture combines multi-machine linked playback with automatic primary-backup failover, ensuring zero-downtime operation during mission-critical live performances where even a single dropped frame is unacceptable.

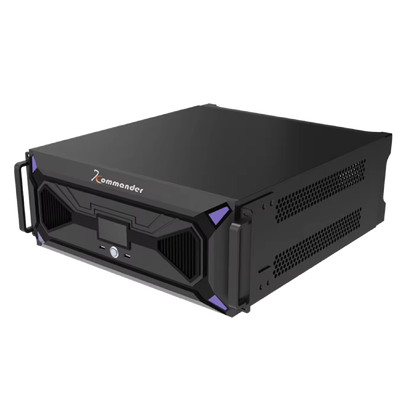

Built to withstand the physical demands of touring while delivering the reliability required for permanent installations, the TS Series is housed in a rugged 4U rack-mount steel chassis with front-access hot-swappable SSD drive bays and dual redundant 800W power supplies. The proprietary Kommander OS—a custom real-time Linux distribution—bypasses standard OS scheduling to deliver deterministic, sub-frame latency performance. Whether driving a single 4K LED wall or orchestrating a 16-channel blended panorama across a 360-degree stage, the TS Series maintains pixel-perfect synchronization without dropped frames or timing drift.

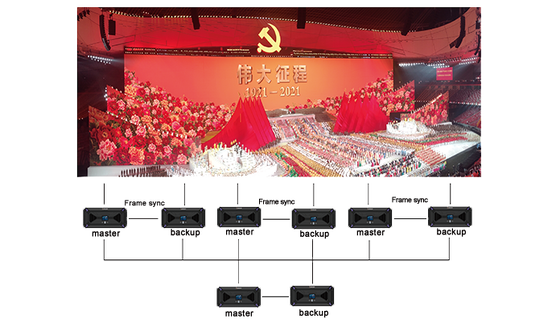

• Multi-Machine Linked Playback: Genlock-synchronized frame-accurate playback across an unlimited number of linked TS Series units, enabling massive multi-display arrays for stadium-scale productions, broadcast studios, and immersive theme park attractions
• Primary-Backup Failover: Hot-standby redundancy with real-time state mirroring. In the event of a primary unit failure, the backup takes over within a single video frame—invisible to the audience—making it indispensable for live broadcast, televised events, and high-stakes corporate keynotes

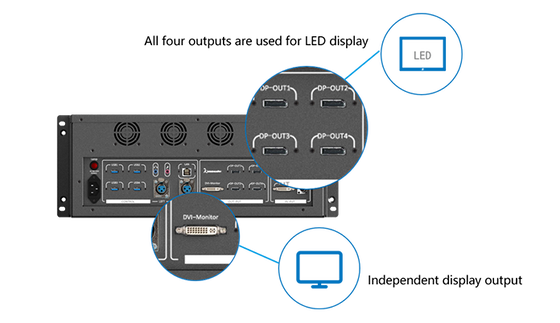

• 4K UHD Output: Each channel outputs native 3840×2160 at 60Hz with 10-bit color depth. The real-time compositing engine supports up to 8 simultaneous layers per channel with alpha-channel transparency, enabling complex PiP layouts, lower-thirds, and dynamic overlay graphics without pre-rendering
• Flexible Channel Configurations: Available in scalable 4–16 channel configurations to match any project scale

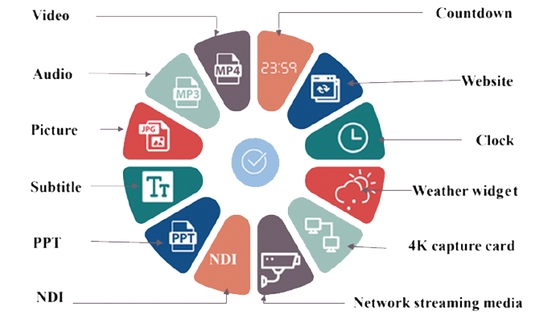

• Comprehensive Format Support: H.264, H.265, ProRes 422/4444, DNxHD, and uncompressed sequences with frame-accurate playback
• Comprehensive Protocol Integration: Native support for DMX-512, Art-Net, SMPTE LTC/MTC, MIDI, and OSC protocols enables bidirectional communication with industry-standard lighting consoles (MA Lighting, ChamSys, ETC), digital audio workstations, and show control systems. Timeline events can trigger lighting cues, and lighting cues can fire media clips
• Timeline-Based Programming: Intuitive drag-and-drop interface for media cue management, scheduling, and real-time adjustments
• Rugged Build: Industrial-grade steel chassis with hot-swappable drive bays and dual redundant 800W power supplies

• Stage & Theater Productions: Drive synchronized content across backdrop LED walls, floor displays, scenic projection surfaces, and IMAG screens simultaneously. SMPTE timecode ensures perfect sync with live orchestra, vocal tracks, and automated stage machinery
• Conferences & Corporate Events: Deploy with confidence for shareholder meetings, product launches, and industry keynotes. The failover architecture guarantees zero visual interruption across main screens, stage monitors, overflow rooms, and lobby digital signage
• Immersive & Experiential Installations: Power multi-projector edge-blended domes, 360-degree cylinder theaters, CAVE systems, and immersive projection-mapped rooms. Frame-accurate genlock prevents tearing between adjacent projectors, while the timeline interface simplifies complex multi-display show programming
• Broadcast & Live Events: SMPTE timecode-locked playback for live television productions, award shows, and concert tours
• Museum & Exhibition: Programmed multi-display narratives with synchronized media, lighting, and interactive triggers

Q: What channel configurations are available?
The Kommander TS Series is offered in scalable 4–16 channel configurations to match any project scale. Entry-level 4-channel models suit small venues and corporate boardrooms; 8-channel configurations handle mid-size theaters and houses of worship; 12-channel setups are ideal for large auditoriums and broadcast studios; and the full 16-channel configuration drives stadium-scale productions, immersive theme park attractions, and complex multi-surface installations. Each channel independently outputs 4K UHD with real-time multi-layer compositing. Multiple TS Series units can be genlocked together for installations requiring more than 16 channels.

Q: How does the failover system work during a live show?
Two TS Series units are connected via a dedicated gigabit heartbeat link. The backup continuously mirrors the primary timeline state, including playhead position, layer visibility, and upcoming cue triggers. If the primary fails—due to power loss, software error, or hardware fault—the backup assumes control within a single video frame (approximately 16.7ms at 60Hz). The switchover is imperceptible to the audience. After the event, logs from both units can be reviewed for diagnostics.

Q: Can the TS Series integrate with lighting consoles and audio systems?
Yes. The TS Series functions as both a timecode master and slave, sending or receiving SMPTE LTC/MTC to synchronize with digital audio workstations, lighting consoles (MA Lighting, ChamSys, ETC), and show control systems. Art-Net and DMX-512 input/output allow the TS Series to trigger lighting cues from the timeline or respond to external lighting events. MIDI and OSC provide additional integration paths for Ableton Live, QLab, TouchDesigner, and custom control applications.
