Flyin 2025 4K Multi-Function Distributed Converged Server Projection Equipment for Edge Fusion Dome 3D Mapping Immersive Room

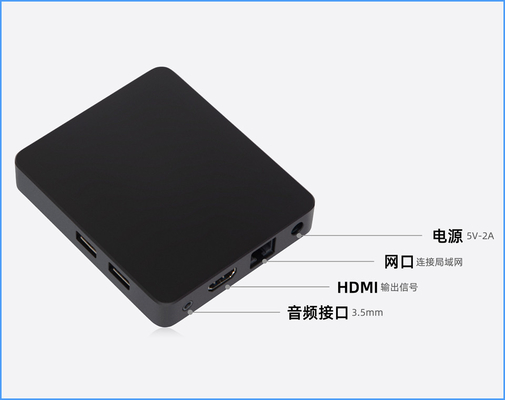

Large Image : Flyin 2025 4K Multi-Function Distributed Converged Server Projection Equipment for Edge Fusion Dome 3D Mapping Immersive Room

Product Details:

Place of Origin:	GUA
Brand Name:	Flyin
Certification:	ROHS CE 3C
Model Number:	A1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD400/pcs
Packaging Details:	cartoon
Delivery Time:	5-8work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100unit/week

Contact Now

Flyin 2025 4K Multi-Function Distributed Converged Server Projection Equipment for Edge Fusion Dome 3D Mapping Immersive Room

Description

Interface Types:	USB/HDMI/3.5mm Audio, Connect Fusion Device, Projector, Stereo	Network Requirement:	Win10/11, Debug Needs Internet+LAN, Playback Only Needs LAN.
Connection Scheme:	USB Share+WIFI LAN, Custom IP To Prevent Conflicts.	Control Terminal Installation:	Unzip, Install Vc, Run With Same-subnet Adapter.
Content:	Upload Optimized/unoptimized MP4/PNG, Full/custom Channel.	Functions:	Serial Control, UDP Protocol, H.265/AV1 Transcode, Time Lock.
Mobile:	Debug: MasterIP:9527, Playback: MasterIP:18080.	Support Resolution:	1024768,1280720,1280800,19201080,19201200,38402160
Support Video Content Resolution:	80008000,16000016000K,320000*320000 And More

Distributed Fusion Projector Solution

Next-Generation Multi-Display Fusion System for Immersive Visual Experiences

Product Description

Our Distributed Fusion Solution is a cutting-edge projection system designed to deliver seamless, high-resolution visuals across multiple projectors or displays. Leveraging advanced hardware and intelligent software, this solution eliminates the need for traditional control computers and complex signal distributors, offering a cost-effective, plug-and-play architecture. Key innovations include:

Autonomous Distributed Architecture

Each fusion device runs a customized Android OS, ensuring virus-free stability and direct one-to-one connection with display devices (cables <1m). The system forms a self-contained LAN, enabling rapid deployment without additional signal processing equipment.
Precision Image Calibration
The built-in camera auto-calibration technology (available in P4 model) automatically adjusts overlapping edges and geometric distortions, achieving pixel-perfect alignment across up to 252 devices per group. This reduces manual debugging time by over 50% compared to traditional methods.
Ultra-High-Resolution Capability
Support for standard resolutions (1024×768 to 3840×2160) and custom resolutions up to 320,000×320,000 pixels allows creation of massive seamless canvases, ideal for dome theaters, curved screens, and large-scale immersive installations.
Dynamic Content Management
The system supports encrypted content playback (H.265 encoding), cloud backup of configuration data, and flexible playlist creation. Users can manage media via Windows software, Android/iOS apps, or third-party UDP-based central control systems (e.g., Crestron).

Product Parameters

Category	Technical Details
Compatibility	Works with projectors, LED screens, LCD displays, splicing screens, and LED walls.
System	Closed Android OS (customized for stability, no Windows dependency).
Resolution Support	- Standard: 1024×768, 1280×720, 1920×1080, 3840×2160 (with 90° rotation). - Custom: User-defined resolutions (e.g., 760×280, 1880×1356).
Splicing & Fusion	- Fusion Zones: 0–100% adjustable overlap for seamless edge blending. - Multi-Machine Sync: Millisecond-level frame synchronization across all devices.
Transmission	Gigabit Ethernet for fast content uploads (10× faster than traditional USB methods).
Control Interfaces	- PC: Free Windows software for centralized management (media playback, fusion adjustment). - Mobile: iOS/Android apps for wireless debugging and playback control. - Third-Party: UDP protocol support for integration with centre control systems.
Security & Backup	- Content Encryption: H.265-based encryption to prevent piracy. - Cloud Backup: Automatic data synchronization for quick system recovery.
Special Functions	- Mask Customization: Upload PNG masks (black transparent background) to create irregular display areas (e.g., circles, triangles). - Picture-in-Picture (PIP): Support for HDMI capture cards to overlay live feeds. - Dynamic Screensaver: Auto-play videos/pictures during idle periods. - Running Lamp (Floating Window): Display scrolling text, GIFs, or videos on top of main content.
Power & Dimensions	- Power: 100–240V AC, 50/60Hz. - Dimensions (A1 model): 150×100×30mm (compact design for easy installation).
Certifications	- International: MA, ILac-MRA, CNSA. - Software: Copyright registration for distributed fusion control system.

Model Comparison

Model	A1 (Standard)	A4 (Professional)	P4 (Camera Edition)
Core Features	Basic geometric correction, dynamic playlists.	Advanced edge blending, multi-zone playback, 4K support.	Camera auto-calibration, 360° dome optimization, real-time color matching.
Max. Devices	32 devices/group	128 devices/group	252 devices/group
Ideal Scenes	Flat screens, small arc walls, retail displays.	Curved/folded screens, conference halls, museum exhibits.	Spherical dome theaters, cylindrical displays, VR arcades.
Storage	4GB RAM + 64GB ROM	4GB RAM + 64GB ROM	4GB RAM + 64GB ROM

Typical Configurations

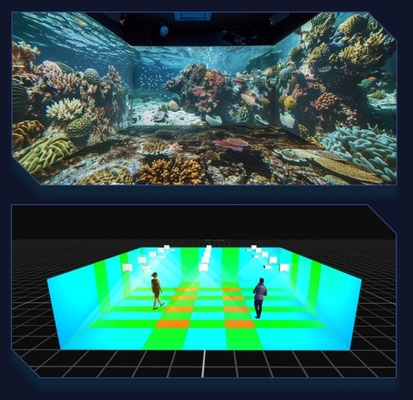

Arc Screen (2 Projectors)

Devices: 2x Fusioner A1, 2x Projectors, 1x Router
Resolution: 3840x1200 (seamless fusion)
Use Case: Retail store visual walls, conference rooms

Flyin 2025 4K Multi-Function Distributed Converged Server Projection Equipment for Edge Fusion Dome 3D Mapping Immersive Room 0

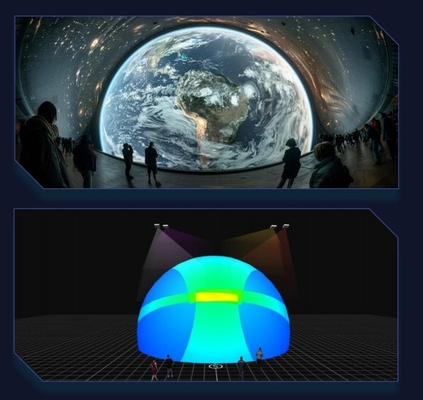

360° Dome Screen (4 Projectors)

Devices: 4x Fusioner P4 (with camera calibration), 4x 4K Projectors, 1x Switch
Resolution: 7680x4320 (curved surface optimization)
Use Case: Planetariums, immersive theaters

Flyin 2025 4K Multi-Function Distributed Converged Server Projection Equipment for Edge Fusion Dome 3D Mapping Immersive Room 1

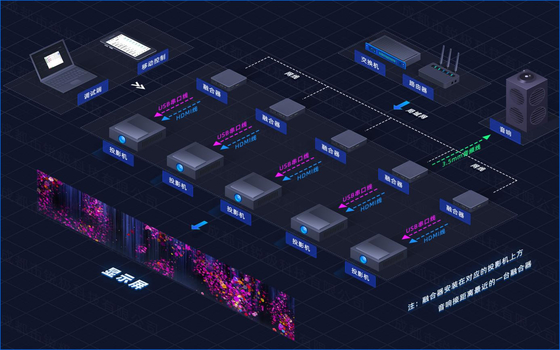

Large Venue (84 Devices)

Devices: 84x Fusioner A1, 84x Projectors, 2x High-Power Switches
Resolution: 80640x2400 (ultra-wide tunnel display)
Use Case: Theme park attractions, exhibition hall installations

Flyin 2025 4K Multi-Function Distributed Converged Server Projection Equipment for Edge Fusion Dome 3D Mapping Immersive Room 2

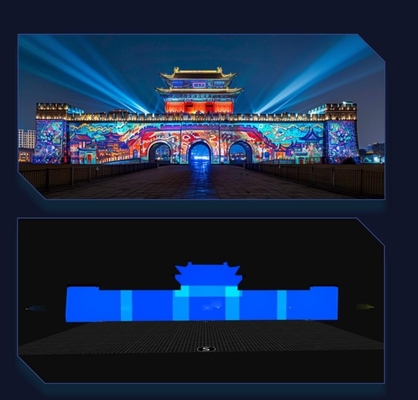

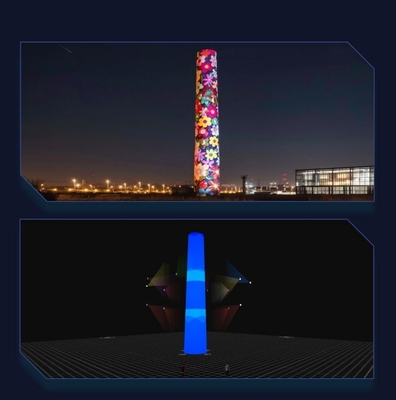

More project cases

Flyin 2025 4K Multi-Function Distributed Converged Server Projection Equipment for Edge Fusion Dome 3D Mapping Immersive Room 3

Flyin 2025 4K Multi-Function Distributed Converged Server Projection Equipment for Edge Fusion Dome 3D Mapping Immersive Room 4

Flyin 2025 4K Multi-Function Distributed Converged Server Projection Equipment for Edge Fusion Dome 3D Mapping Immersive Room 5

Flyin 2025 4K Multi-Function Distributed Converged Server Projection Equipment for Edge Fusion Dome 3D Mapping Immersive Room 6

Key Advantages

Cost Efficiency
- Eliminates expensive control computers and signal distributors.
- Reduces cabling and installation costs with short-distance connections (<1m).
Time Savings
- Auto-calibration cuts setup time from hours to minutes.
- Cloud backup enables quick restoration of configurations.
Scalability
- Expand from 2 to 252 devices without redesigning the network architecture.
- Support for ultra-high resolutions ensures future-proofing for large projects.
Flexibility
- Customizable masks and PIP function allow creative display designs.
- Multiple control options (PC, mobile, third-party systems) fit diverse workflow needs.

Packaging & Shipping

Included Items:
- 1× Fusion device (model as ordered)
- 1× Power adapter
- 1× HDMI cable
- Control software (Windows/Mac)
- User manual
Services:
- Free Technical Support: 24/7 online debugging assistance.
- Custom Solutions: Tailored configurations for unique venues (e.g., irregular shapes, high-resolution requirements).
- Bulk Order Benefits: Discounts for large-scale projects, free demo kits for qualified buyers.
