Professional 4K laser projector engineered for demanding outdoor building mapping, 3D projection, and large venue applications. Features advanced laser technology with exceptional brightness and precision.
Full HD 4K resolution with 30,000 ANSI lumens for superior image quality in various lighting conditions.

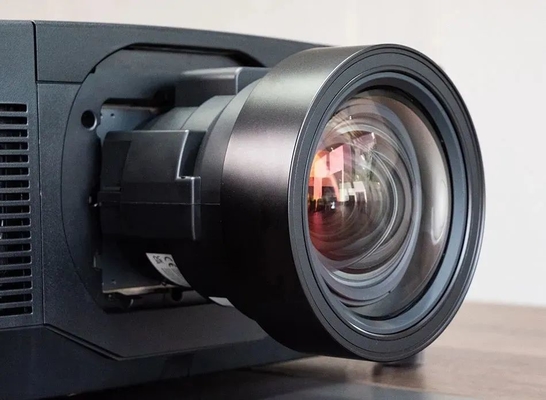

Equipped with high-definition laser lens and motorized lens shift capabilities for precise image positioning.
360-degree projection capability with sealed dustproof design for reliable operation in diverse environments.
Original High-Quality Standard Motorized Lens

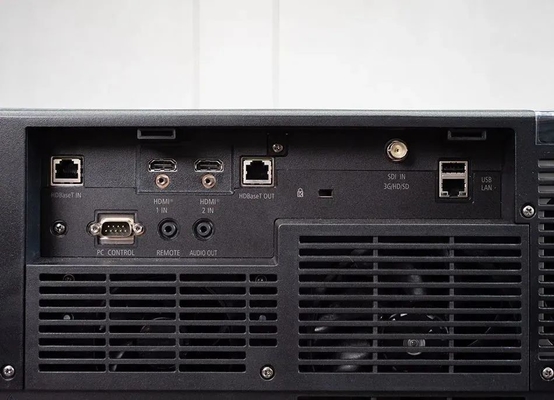

| Inputs | HDMI(1.4B Compatible) x2; DVI-D x1; HD-BaseT(Compatible) x1; RGB combination (D-sub 15 pin) x1; USB(B) Display ×1; Mini jack 3.5mm audio (VGA / DVI-D shared) x1 |
|---|---|
| Motorized Lens Shift | H: ±25%(MAX), V: ±65%(MAX) |
| Outputs | HDMI(1.4B Compatible) ×1; Mini jack 3.5mm audio x1 |
| Image Size | 60-1000 inches (diagonal) |
| Control | Serial port (D-sub 9 pin, RS232) x2(in + out); RJ45(10BASE-T/100BASE-TX) x1; Mini jack 3.5mm stereo(Input for wired control) x1; Mini jack 3.5mm stereo(Output for wired control loop) x1; DMX512 x1 |
| Other Interfaces | USB-A x1; LAN(Network)x1(Shared) |
| Internet of Things (IoT) | Crestron RoomView (Compatible); AMX Discovery (Compatible); PJ Link (Compatible) |
| Certification | CE, RoHS, CCC etc. |
Easy maintenance and lens replacement with quick-disconnect mechanism.
Enables multiple projectors to seamlessly splice complete images for bright, super-large displays with pure colors and high-resolution output.
Eliminates filter screen maintenance and replacement, saving time and effort in demanding environments.
Save and recall lens positions adjusted via lens displacement function. Preset positions remain stored through power cycles.
Full 360-degree projection capability with menu-controlled screen translation for flexible installation options.
HDBaseT multi-signal transmission system utilizes Category 5e/6 network cables for real-time HD signal transmission up to 100 meters. This simplified cabling solution enhances system stability and reliability while accommodating complex installation environments.
