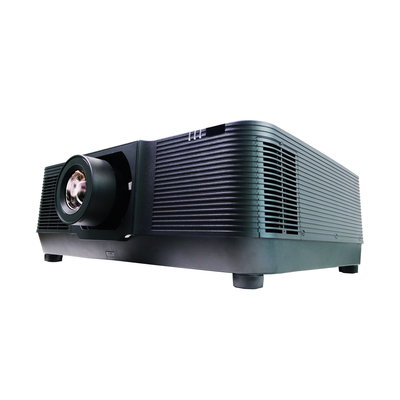

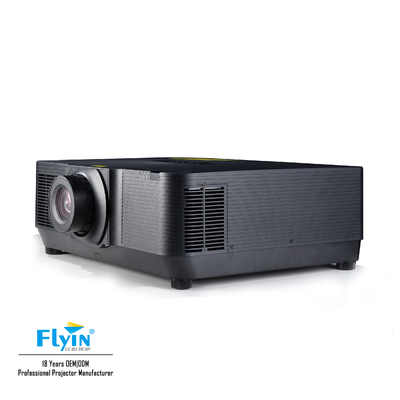

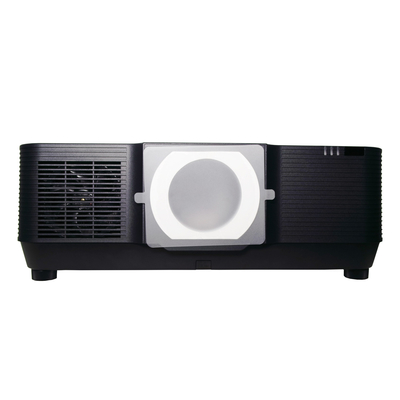

Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K

Certification
China Shenzhen Flyin Technology Co.,Limited certification
China Shenzhen Flyin Technology Co.,Limited certification
Customer Reviews
I rarely comment, but this time I had to. I can't spend a lot on a projector and Julia recommended this for me. I received the projector three days after it was shipped and I can't wait to take it apart. It looks even better than the picture. The projection effect is also great. I had a great shopping experience this time, so much thank Julia

—— Madison

SZFLYIN projector is best of quality. It's worth every penny. We use it almost everynight. Picture quality is very best. Vibrant colors and easy-to-adjust angles. We stream everything. Volume and speaker quality are much better than I expected. We projected the film onto our fence, which was 6 feet tall and least 20 feet . This projector is perfect

—— D.VIEW

I'm Online Chat Now

Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K

Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K
Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K

Large Image :  Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K

Product Details:
Place of Origin: Shenzhen,China
Brand Name: FLYIN/NEC
Certification: CE,FCC,ROHS
Model Number: PL-WU20K
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 11800-13999 /PCS
Packaging Details: AAA Battery ×2,Remote Control ×1,Power Cable×1,VGACable ×1,CD-ROM(User Manual)×1, Quick installation manual, warranty card, Lens cover
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 500 PCS Per Month

Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K

Description
Features: Projection Up To 500" Brightness: 20000 Lumens
Native Resolution: WUXGA (1920×1200) Type: 3LCD Laser Technology
Contrast Ratio: 3000000:1 Screen: Up To 500" Super Big
High Light:

3 Chips LCD Laser Projector

,

WUXGA LCD Laser Projector

,

20000 Lumens 3D Mapping Projector

TECHNICAL SPECIFICATIONS
Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K 0
Laser Projector EL-M906U not only pumps out up to 20,000 lumens but also boasts sealed optics and a laser light engine that can mean a long and maintenance-free life.
Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K 1
* DisplayPort Version 1.3
* HDMI 2.0 (x2) with HDCP 2.2
* Computer RGB in (x2, 15-pin D-Sub)
* RS-232C Serial Port
* USB (Type A, for accessory power, mouse, service)
* Wired LAN (RJ-45)
* HD Base T In (RJ-45)
* HD Base T Out (RJ-45)
* Audio in (3.5 mm)
* Audio out (3.5mm)
* 3D Synchronization (mini DIN 3 pin)
* Remote Control extension (3.5mm)
Specification
Main Spec
Projector Type
Liquid Crystal Display 3x0.76”WUXGA
Chip Size
3*0.79'
Native Resolution
WUXGA (1920×1200)
Brightness
20,000 Lumens
Uniformity
90%
Contrast
3000000:1
Aspect Ratio
16:10:Native / 4:3 Compatible
Light Source
Type
Laser Technology
Life
Standard :20000 hours Eco Mode:25000hours
projector lens
Projector Lens
1.3-3.02:1/2.3x (20000)
Throw Ratio
(0.36~5.50)
Keystone Correction
H
±50°
V
±30°
Projection Method
Ceiling,Front,Rear
Input
DVI-Dx1
HDMI 1.4(SupportHDCP*3)x1
15-pin Mini-Dsubx1
HDBaseT*4x1
Wired Remote x1 3.5mm
RJ45×1(LAN Control)
RS232(D-sub 9pin)x1
USB-A*1 (5V/1.5A) USB-B *1
3G-SD *1 (Option)
Output
15-pin Mini-Dsubx1
HDMI 1.4(Support HDCP*3) OUTx1
3D-Sync x1
Power Input( Voltage&Frequency)
100-240V AC±10%,50/60Hz
Power Consumption
Normal:850W,ECO:750W
Case Material
Molded Plastic
Standby Power Consumption
<0.5W
Dimension DxWxH
600*218*503mm
Net Weight
About 28.5 kg
Noice
Normal:35dB ECO:33dB
Working Temperature*5
High Altitude
0m-2500m(>1500m Using High Altitude Mode)
Temperature
5-40℃,
Humidity
10%-85%
Accessories
AAA Battery ×2,Remote Control ×1,Power Cable×1,VGACable ×1,CD-ROM(User Manual)×1, Quick installation manual, warranty card, Lens
cover
Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K 2
Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K 3
Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K 4
Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K 5
Replace lens step ,
1. Remove the dust cover from the projector
2. 2. Prepare the projector lens
3, Insert the lens into the projector with the arrow on the lens label facing up.
4, 4. Turn the lens clockwise.
Turn until you hear a click.
The lens is now attached to the projector.
Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K 6
Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K 7
Digital Drive 3 Chips LCD Laser Projector Large Outdoor Cinema 20000 Lumen 4K 8
Remove the lens
Preparation:
1. Turn on the projector to display the image.
2. Hold LENS RELEASE button for more than 2 seconds.
The lens position will be moved to the original position.
3. Turn off the main power switch and unplug the power cord.
4. Wait until the projector chassis is cooled enough to handle.
5. When the release button at the bottom of the lens mount on the front panel of the projector is fully pressed, turn the lens counterclockwise.
* Lens release

3. Slowly pull down the lens from the projector.
* After removing the lens, install the lens cover (front and back) that comes with the lens
before storing the lens.
* If no lens is about to be installed on the
projector, please install the dust cover attached
to the projector.
* Do not touch or remove any other component except the lens and parts related to it.
Otherwise, you may experience product failure, electric shock, fire, or other incidents.
* Make sure model of the lens is compatible with your projector before installing it.
* When replacing the optional lenses, it must be done by a professional.During the replacement process, pay attention to mechanical damage and thermal burns of the lens.
* For details on lens and its installation, please call local dealers.
* Be careful in removing the lens. Do not drop it.
* When replacing the optional lens, just for safety reasons, please be sure to cut off power to avoid electric shock fire and other safety accidents.
