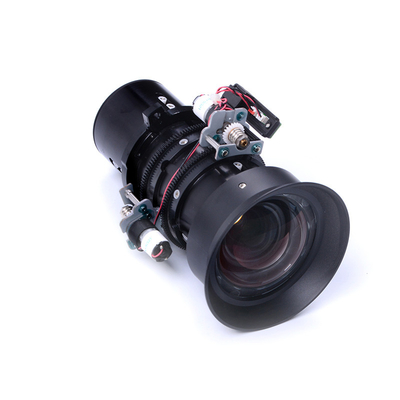

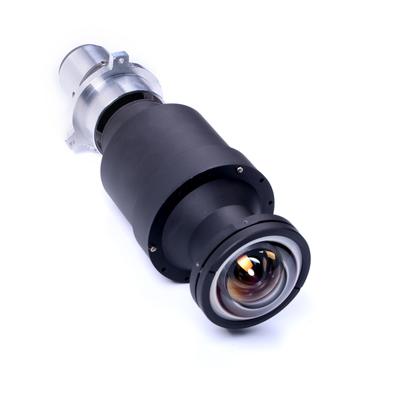

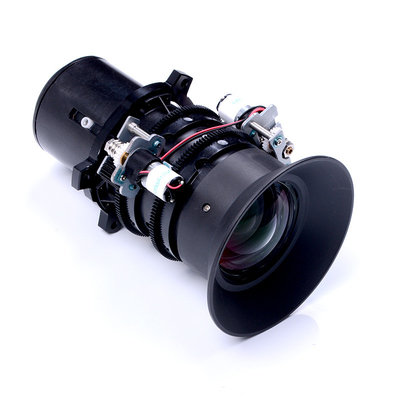

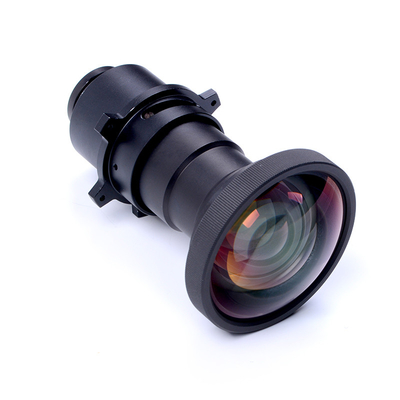

High-quality wide angle digital projector lens compatible with most models in the market. This short throw fisheye lens features double concave design for superior projection performance.
This lens is compatible with a wide range of projector models including:
Each lens undergoes rigorous testing before leaving our factory. All lenses are refined to produce excellent picture performance. Our lenses offer comparable quality to original equipment at significantly lower prices.
We maintain sufficient stock of our best-selling lenses, with annual sales of 6,000-8,000 units. Express door-to-door delivery ensures you receive your lens within 5-7 days.
| Model Name | LCD 0.8 |
| Resolution (Typical) | 0.76" WUXGA |
| Throw Ratio (T/R) | 0.79 |
| Type | Fixed Focus |
| Telecentric | Yes |
| F/# | F2.4 |
| Offset Ratio | 90% |
| Screen Size @ 1m | 59" |
| Focus Length (f) mm | 13.55 |
| MTF(@67lp/mm) | >45% |
| Chromatic Aberration | ≦0.8pix |
| Distortion(TV) | Max.±1% |
| Max.Diameter*L (mm) | φ102x167 |
| Materials | Glass+Metal |
The following tables are for reference only. Please contact the supplier for detailed compatibility information.
| Model | Brightness | Resolution | Chip | Lens Model & Throw Ratio |
|---|---|---|---|---|
| CB-L1100U | 6000 | WUXGA | 0.76" | 0.8:1 |
| CB-L1300U | 8000 | WUXGA | 0.76" | 0.8:1 |
| CB-L1200U | 7000 | WUXGA | 0.76" | 0.8:1 |
| Model | Brightness | Resolution | Chip | Throw Ratio |
|---|---|---|---|---|
| CB-G7800 | 8000 | XGA | 0.79" | 0.8:1 |
| CB-G7200W | 7500 | WXGA | 0.76" | 0.8:1 |
| CB-G7100 | 6500 | XGA | 0.79" | 0.8:1 |
| CB-G7900U | 7000 | WUXGA | 0.76" | 0.8:1 |
| CB-G7500U | 6500 | WUXGA | 0.76" | 0.8:1 |
| CB-G7000W | 6500 | WXGA | 0.76" | 0.8:1 |
| CB-G7400U | 5500 | WUXGA | 0.76" | 0.8:1 |
