Ultra Short Throw Projector 1080P

Place of Origin: China
Brand Name: FLYIN/OEM/COSTA
Certification: CE,FCC ,ROHS
Model Number: EL-PL456WT
Price: can negotiate
Packaging Details: "MAX Dimensions (WxHxD mm)" 520x435x168 Net. Weight (KG) ~11
Delivery Time: 5-10 work days
Payment Terms: T/T, Western Union, ,Alibaba Trade Assurance
Supply Ability: 5000 Pieces Per Month
Inquiry Now
Get A Quote
Specifications
Highlight Features

Ultra Short Throw Projector 1080P

,

5500 Lumens Ultra Short Throw Projector

,

5500 Lumens 3LCD Laser Projector

Brightness:
5000lm,
Display Panel:
3x0.64”,
Display Technology:
Liquid Crystal Display,
Native Resolution:
WXGA 1280 X 800),
Normal Mode:
20000hrs,
Throw Ratio:
"0.235:1 <0.456m@90”>",
Screen Size:
'80~"120",
Product Description
Ultra Short Throw Projector 1080P
3LCD Laser Ultra Short Throw 5500 Lumens 1080p for Education Projector EL-PL456WT
Display Specifications
Brightness 5000lm
Display Panel 3x0.64"
Display Technology Liquid Crystal Display
Native Resolution WXGA (1280 x 800)
Light Source Lifetime 20000hrs (Normal mode)
Contrast Ratio (FOFO) 500000:1
Uniformity (Actual Min) 80%
Aspect Ratio Native: 16:10
Compatible: 4:3/16:9
Projection Lens
Lens F1.7
Zoom/Focus Manual
Throw Ratio 0.235:1
<0.456m@90"
Zoom Ratio N/A
Screen Size 80"~120"
Lens Shift N/A
Input/Output Ports
Input VGA *1
HDMI 1.4B(IN) *2
USB-A *1
USB-B *1 (Display)
RJ45 *1 (Display)
Audio in (mini jack, 3.5mm) *1
Output VGA *1
Audio out (mini-jack, 3.5mm) *1
Control RS232 *1
RJ45 *1 (Control)
USB-B *1 (For upgrade)
General Specifications
Audio Speaker: 16W*1
Dust Filter With Filter
Power Requirements 100~240V @ 50/60Hz
Power Consumption Normal: 350W
ECO1: 270W
ECO2: 230W
ECO Standby Mode <0.5W
Noise (1m) 37dB (Normal)
27dB (ECO)
Operating Temperature 5 to 40°C
Operating Humidity 20-80%
Storage Temperature -10 to 50°C
High Altitude 0~3000m
Additional Functions
Keystone Correction V: ±5°
H: ±5°
Correction Features Pincushion/Barrel Correction
6 Corner Geometry correction
Grid image tune
OSD Languages 26 languages including English, German, French, Spanish, Japanese, Chinese, Korean, and more
LAN Control RoomView (Crestron)
AMX Discovery
PJ Link
Scanning Frequency H-Sync: 15~100KHz
V-Sync: 24~85Hz
Display Resolution Support Computer: VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz
Video: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Software Settings Auto Setup, Blank, Suspend, Picture modes, Auto Ceiling, D-Zoom
Cooling Time 0s, Normal, 60s
360° Projection Yes
Wireless Display (Optional) SmartPhone: Android (APK), iPhone (Airplay)
PC: WiFi Display for Windows & MAC via dongle
Dimensions & Weight
Maximum Dimensions (W×H×D mm) 520 × 435 × 168
Net Weight (KG) ~11
Packaging Box Dimensions (W×H×D mm) 610 × 526 × 266
Gross Weight (KG) ~13.5
Product Images

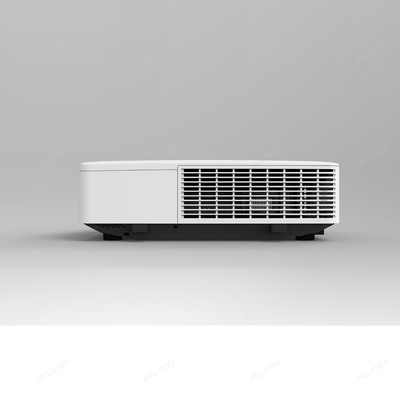

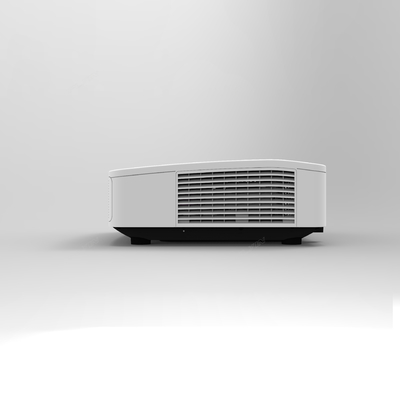

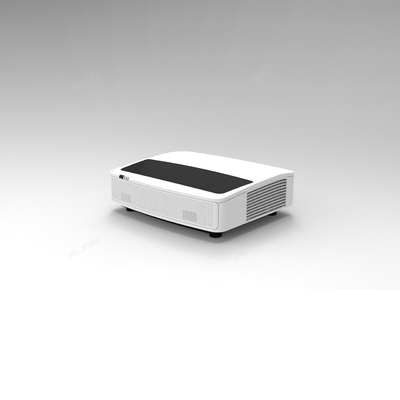

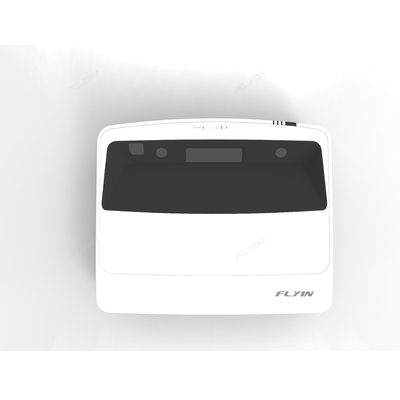

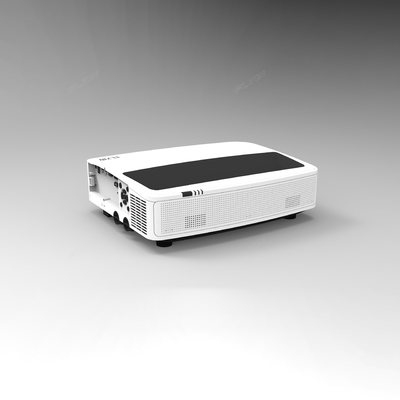

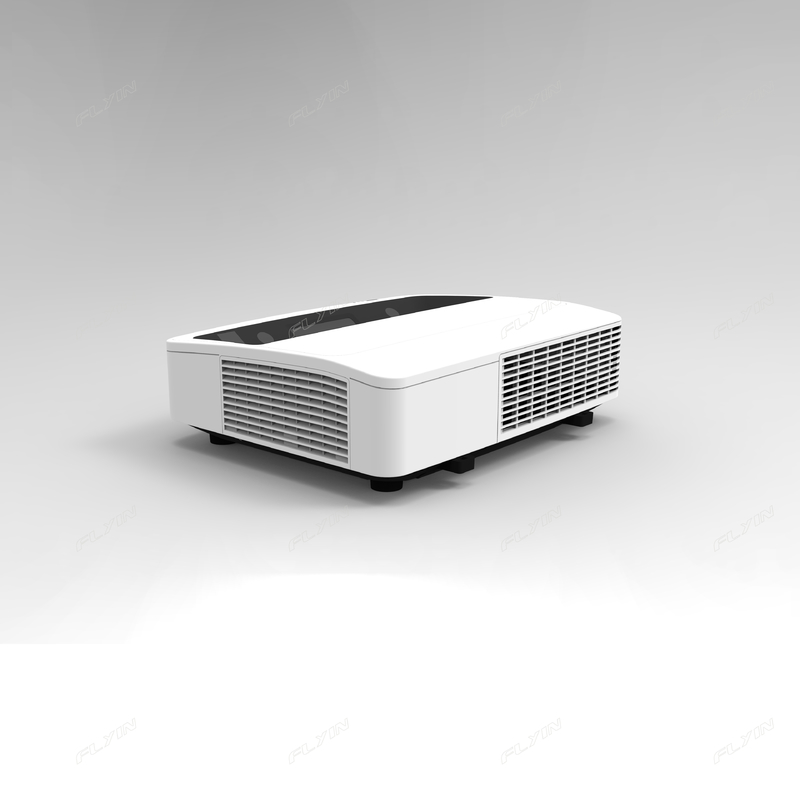

Ultra Short Throw Projector front view Ultra Short Throw Projector side view Ultra Short Throw Projector rear view with ports
