Product Details:
|
| Brightness: | 6000 ANSI Lumen | Lens Vendor: | Fijifilm Lens |
|---|---|---|---|
| Screen Size: | 30-300 Inch | Contrast Ratio: | 5000000:1 |
| Aspect Ratio: | Native:16:10 Compatible: 4:3/16:9 | Input: | VGA HDMI 1.4B(IN) USB-A USB-B RJ45 HD BaseT Audio In |
| Output: | VGA Audio Out RS232 RJ45 USB-B | Speaker: | 16W*1 |
| High Light: | 300inches Church Video Projectors,3LCD Laser Church Video Projectors,6000 ANSI Lumens 3LCD Laser Projector |
||
3LCD Laser 300 Inches Church Video Projectors 6000 ANSI Lumens
Church Video Projectors 6000 ANSI Lumens 3LCD 300 Inches Laser WUXGA HDMI Vidoo Proyector
High brightness and contrast
High definition image quality and powerful function
Meet the large hall, ladder classroom, conference room, exhibition hall display environment.

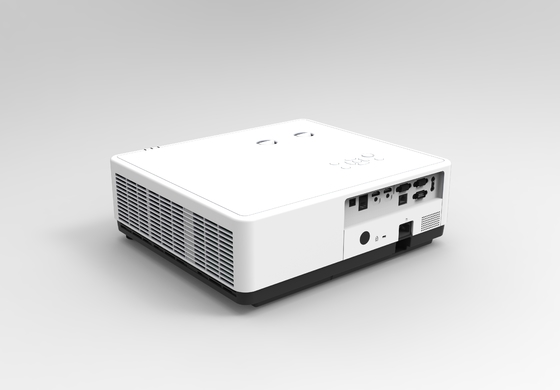

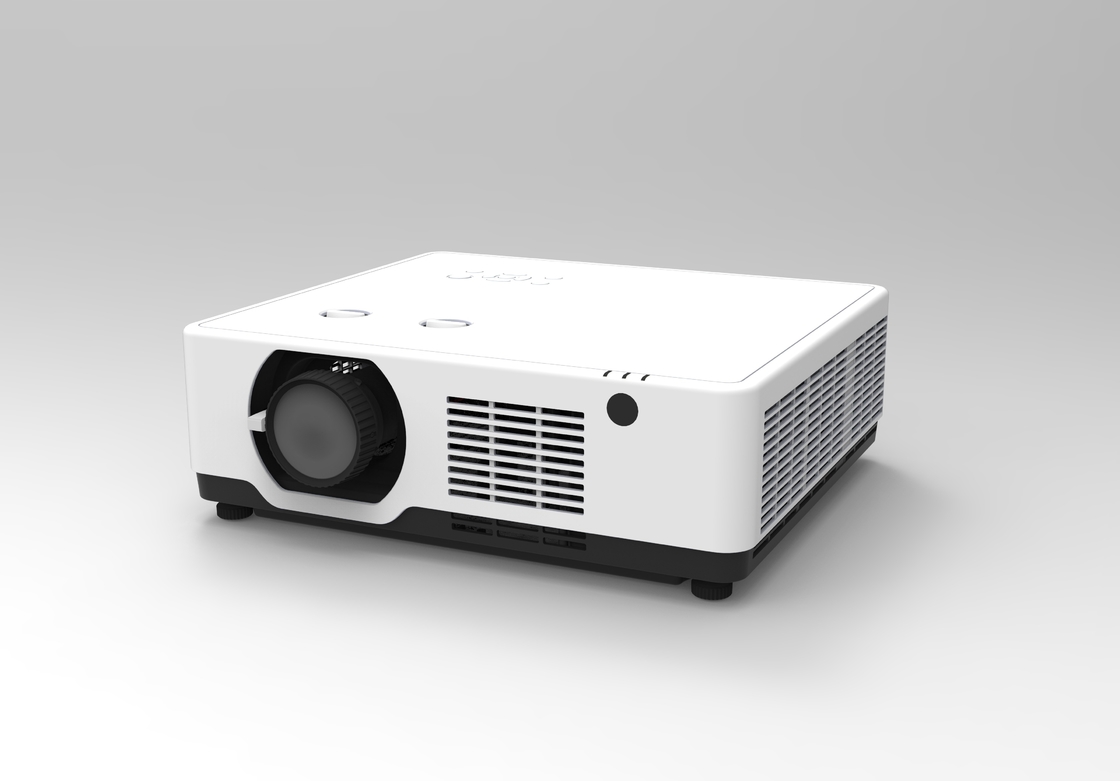

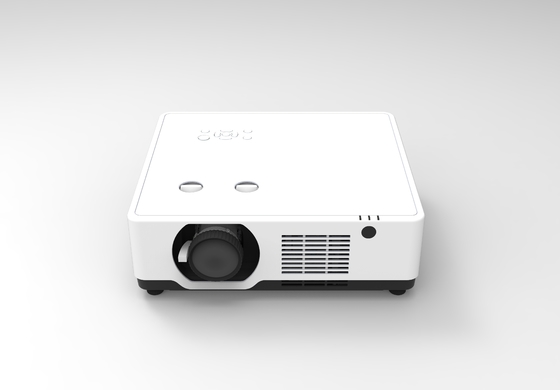

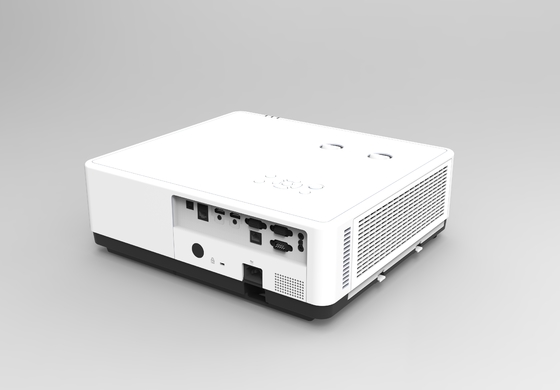

Church Projector EL-VL606U
| Resolution | WUXGA | |
| Brightness | ||
| Brightness --TYP | 6000 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Life time | Normal mode | 20000hrs |
| ECO mode | 20000hrs | |
| ECO2 mode | 30000hrs | |
| Projection Lens | Lens Vendor | RICOH Lens |
| F | 1.5~2.08 | |
| f | 17.2~27.7mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:＋60%～0%, H:±29% |
|
| CR | Contrast Ratio (FOFO) |
5000000:1 |
| Noise | Noise(dB) | 38dB(Normal) 30dB(ECO1) 28dB(ECO2) |
| Uniformity | Uniformity(Actual Min) -JISX6911 |
90% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| HD BaseT | *1(Optional) | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
