Flyin EL-G36KU 4K 7D Hologram Laser Projector with 3LCD 30000 ANSI Lumens for Outdoor Indoor

Flyin EL-G36KU 4K 7D Hologram Laser Projector with 3LCD 30000 ANSI Lumens for Outdoor Indoor

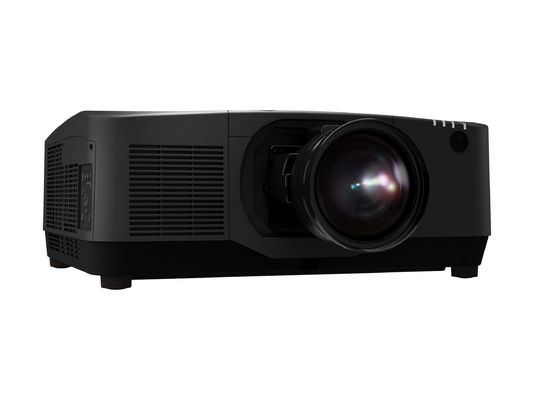

The Flyin EL-G36KU is a flagship 4K 7D hologram laser projector engineered for uncompromising visual performance. Built around a triple-LCD imaging system and a solid-state laser light source, it outputs a formidable 30,000 ANSI lumens with 1.07 billion colors, making it equally capable in black-box theaters, outdoor 3D mapping events, immersive dome installations, and large-scale corporate productions. Its fully sealed optical engine and industrial-grade thermal design ensure stable, maintenance-free operation across tens of thousands of hours.

Technical Specifications

With a native WUXGA (1920*1200) resolution panel and 4K signal input support, the EL-G36KU reproduces every pixel with clinical precision. The 5,000,000:1 dynamic contrast ratio—achieved through laser dimming and advanced iris control—delivers inky blacks alongside brilliant highlights, preserving shadow detail and highlight gradation even in high-ambient-light environments. A REC.709-calibrated color engine ensures true-to-source colorimetry for both presentation and cinematic content.

Installation & Setup

Designed with the AV integrator in mind, the EL-G36KU supports ceiling mount, rear-projection, table-top, and 360-degree free-orientation installation. The motorized lens suite—covering powered zoom, focus, and ±60% vertical / ±20% horizontal lens shift—eliminates the need for scaffolding adjustments post-install. Combined with built-in geometric correction and four-corner keystone, the projector adapts to challenging venue geometries without external processors.

In Operation

In operation, the EL-G36KU produces a luminous, color-rich image that holds its calibration across the entire 20,000-hour laser lifespan—no lamp decay, no color drift. The 1.07-billion-color palette, driven by a high-speed video processor with frame interpolation, renders fast-motion content without judder. Whether powering a live camera feed at a gala dinner or a 7D hologram sequence in a theme park attraction, the output remains crisp, saturated, and artifact-free.

Edge Blending Function

The built-in edge blending engine supports horizontal and vertical multi-projector arrays, with adjustable blend-zone width and black-level compensation for invisible seams across any screen geometry. Combined with warping and geometric correction presets, a single control interface can map content onto curved domes, cylindrical screens, and irregular architectural surfaces—eliminating the cost and complexity of external media servers for many installations.

Lens Position Memory & Locking

The lens-memory system stores up to 10 preset configurations—each capturing zoom, focus, shift, and aspect-ratio settings. This is invaluable for rental and staging companies that rotate the same projector between a 16:9 conference screen, a 2.35:1 cinema mask, and a 4:3 legacy format: recalling a preset takes under three seconds and requires no manual lens touching. All presets survive power cycles, so the projector is ready the moment it boots.

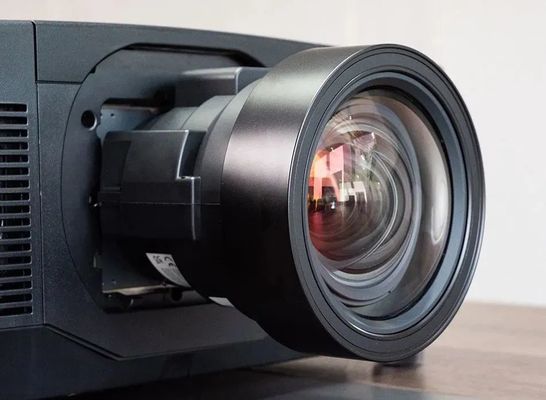

Optical Zoom & Lens Movement

A high-ratio optical zoom lens (1.6* magnification) preserves full resolution across the entire zoom range—unlike digital zoom, which crops pixels. The powered lens shift mechanism offers ±60% vertical and ±20% horizontal displacement, allowing the projector to be placed well off-axis from the screen center while maintaining perfect geometry. Fine-tuning is handled via the remote control or LAN interface, removing the need for ladder work once the projector is rigged.

Intelligent Brightness Adjustment

The EL-G36KU incorporates an adaptive brightness management system that adjusts laser output between 50% and 100% in 1% increments. This serves a dual purpose: protecting audience and presenter eye comfort during close-proximity installations, and reducing energy draw and thermal load in eco-sensitive venues. Brightness schedules can be programmed by time-of-day to align with ambient light cycles, and the gradual dimming transition is imperceptible to viewers.

Connectivity Options

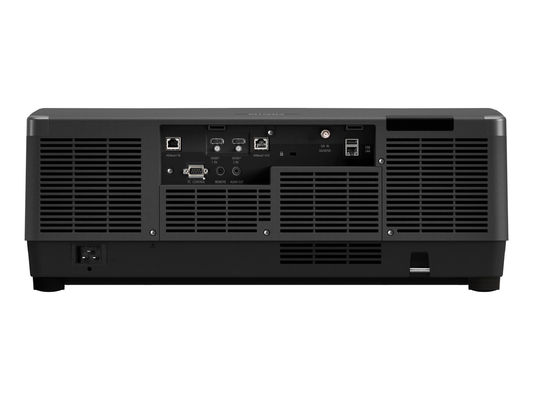

The I/O panel includes dual HDMI 2.0, DVI-D, VGA, 3G-SDI, and HDBaseT inputs—plus a dedicated HDMI loop-out for daisy-chaining signals to secondary displays or auxiliary monitors. Audio is handled via stereo RCA and 3.5 mm I/O. On the control side, RS-232, RJ-45 LAN, and a USB-B service port provide multiple paths for integration with Crestron, AMX, Extron, and PJLink-compliant control systems.

Control Interface

The onboard backlit control panel gives quick access to power, source, menu navigation, lens controls, and status LEDs—all readable in a dark rack room. For remote operation, the projector exposes a full RESTful API over Ethernet alongside standard PJLink and SNMPv2 protocols, enabling IT teams to integrate it into existing monitoring dashboards. An optional Wi-Fi dongle adds wireless control via a browser-based interface accessible from any tablet or smartphone on the same network.

Application Scenarios

The EL-G36KU excels across a broad spectrum of professional applications: outdoor building-mapping festivals, planetarium and dome theaters, immersive museum galleries, broadcast studio backdrops, worship venues, auditoriums, and touring live events. Its 30,000-lumen output competes with daylight in partially shaded outdoor venues, while the sealed optical path and dual dust filters make it reliable in dusty construction-site or outdoor festival environments.

Mounting Options

The chassis is rated for 360-degree free-orientation installation—project straight down onto a floor map, straight up onto a ceiling dome, or at any oblique angle required by the creative brief. The included rigging frame has multiple M10 pick points compatible with standard truss clamps, and the center of gravity is balanced around the mounting plane to minimize torque on rigging hardware.

Large Venue Deployment

In real-world deployments—from 5,000-seat auditoriums to outdoor stadium façades—the EL-G36KU maintains >90% brightness uniformity corner-to-corner, a metric that cheaper projectors sacrifice for headline lumen numbers. The 30,000-lumen output, combined with a selection of long-throw and ultra-short-throw interchangeable lenses, ensures a single unit can cover screens from 70 to 1,000 inches without hot-spotting or vignetting.

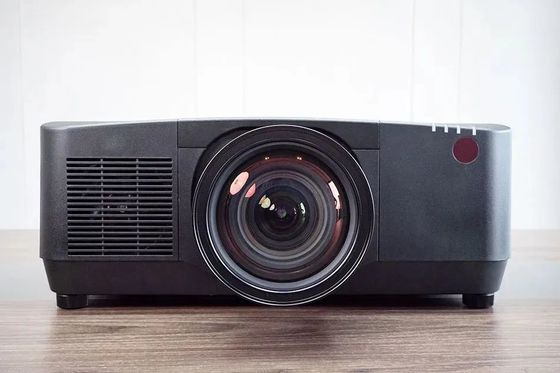

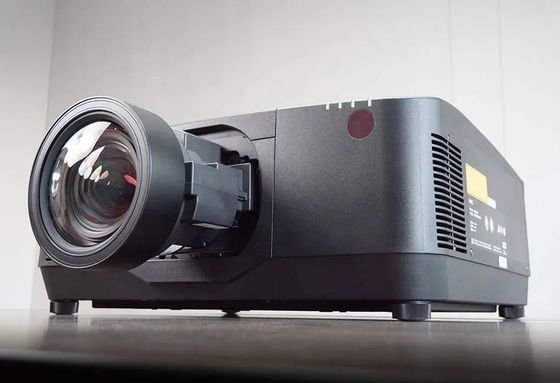

Detailed Product View

Every external panel is precision-machined from aluminum alloy, finished with a scratch-resistant matte-black powder coat that suppresses stray light reflections. The front-facing intake and rear-facing exhaust create a straight-through airflow path with dual HEPA-grade filters accessible from the side panel without unmounting the projector. The lens mount is a positive-lock bayonet with an integrated anti-vibration collar, ensuring zero image shift even in bass-heavy live-event environments.

Manufacturing Excellence

Each EL-G36KU is assembled, calibrated, and burned-in at our ISO 9001-certified Shenzhen facility. Every unit undergoes a 48-hour continuous-run stress test with thermal cycling before it leaves the factory. Optical alignment is verified on a laser interferometer, color uniformity is measured with a spectroradiometer at 25 sample points across the image, and the final QA report is archived by serial number. This is the same rigor expected by our OEM partners in the broadcast and cinema industries.

Q1: What is the laser light source lifespan of the EL-G36KU, and does it require lamp replacements?

The EL-G36KU features a laser light source rated for 20,000+ hours of maintenance-free operation. Unlike traditional lamp-based projectors that require periodic bulb replacements, the laser engine maintains consistent brightness throughout its lifespan, significantly reducing total cost of ownership and eliminating mid-event lamp failure risks for mission-critical applications.

Q2: Can multiple EL-G36KU projectors be edge-blended for ultra-wide or dome projection setups?

Yes, the EL-G36KU includes built-in edge blending and geometric correction capabilities. Multiple units can be seamlessly combined to create ultra-wide, ultra-high-resolution, or curved displays. The projector supports horizontal and vertical blending with adjustable blend zones, brightness compensation, and color matching to ensure perfectly uniform transitions between projectors. This makes it ideal for immersive dome theaters, projection mapping, flight simulators, and large-scale digital signage installations.

Q3: What are the installation and connectivity options for this projector?

The EL-G36KU supports comprehensive installation configurations including ceiling mount, rear projection, table-top, and 360-degree orientation. It features motorized 1.8x optical zoom, lens shift (vertical +/-50%, horizontal +/-15%), and stores up to 10 lens preset positions. Connectivity includes dual HDMI 2.0 (HDCP 2.2), DVI-D, VGA, 3G-SDI, HDBaseT (up to 100m transmission), and RJ-45 LAN for network control. The projector is compatible with professional AV control systems including Crestron, AMX, Extron, and supports PJLink protocol.
