| Key Parts | ||
|---|---|---|
| Panel | 3x0.63" without MLA | |
| Zoom Ratio | 1.2X Zoom | |
| Light source | Laser | |
| Brightness | ||
| ISO21118 | ||
| Brightness --MKT | 3000 | |
| Brightness --TYP | 2600 | |
| Brightness --MIN | 2400 | |
| Overall Spec | ||
| Panel | ||
| Display Panel | 3x0.63" without MLA | |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | XGA (1024 x 768) | |
| Light source Life time | ||
| FullNormal/Normal mode | 20000hrs | |
| ECO1 mode | 30000hrs | |
| ECO2 mode | 30000hrs | |
| Projection Lens | ||
| Lens Vendor | RICOH Lens | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.48~1.78:1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300 inch | |
| CR | ||
| Dynamic Contrast Ratio (FOFO) | 5000,000:1 | |
| Noise | ||
| Noise(dB) | 37dB(Normal) 30dB(ECO1) 28dB(ECO2) | |
| Uniformity | ||
| Uniformity(Actual Min) -ISO21118 | 80% | |
| AR | ||
| Aspect Ratio | Native:4:3 Compatible: 16:9/16:10 | |

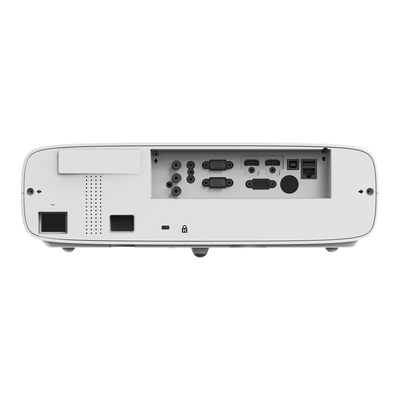

| Terminal (I/O Port) | ||
| Input | ||
| VGA | *1 | |
| HDMI | *2 | |
| Video | *1 | |
| Audio in (mini jack,3.5mm) | *1 | |
| Audio in (RCA×2) <Audio L/R> | *1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| Output | ||
| VGA | *1 | |
| Audio out | *1 | |
| Control | ||
| RS232 | *1 | |
| RJ45 | *1 (Control) | |
| General Spec | ||
| Audio | ||
| Speaker | 16W*1 | |
| Dust filter | W/Filter | |
| Filter Life time | 7000h | |
| Power Consumption | ||
| Power Requirements | 100~240V@ 50/60Hz | |
| Other Functions | ||
| Keystone | ||
| Keystone Correction (Lens@center) | V: ±30° H:±30° | |
| OSD | ||
| Languages | 26 | |
| Others | ||
| 360° projection | Yes | |
| Wireless display | SmartPhone: Android:Install APK for Android | |
| Dimension & Weight | ||
| MAX Dimensions (WxDxH mm) | 390*294*128 | |
| Net. Weight (KG) | 5Kg | |
| Packaging Box Dimensions (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~6.5Kg | |
