Product Details:
|
Light Source: | Nichia Blue Laser | Light Source Life Time: | 30000H |
---|---|---|---|
Noise(dB): | 28dB | Speaker: | 16W |
360° Projection: | YES | Keystone Correction: | YES |
High Light: | 3lcd Laser Projector 5500 Lumens,Meeting Room 3lcd Laser Projector,Short Throw Meeting Room Projector |
Key parts
|
|
|
|
Panel
|
3x0.59” with MLA
|
|
Light source
|
Nichia Blue Laser
|
Brightness
|
|
|
ISO21118
|
Brightness
|
5500
|
Overall Spec
|
|
|
Panel
|
Display Panel
|
3x0.59” with MLA
|
|
Display Technology
|
Liquid Crystal Display
|
|
Native Resolution
|
WUXGA (1920*1200)
|
Light source Life time
|
Normal mode
|
20000hrs
|
|
ECO mode
|
30000hrs(TBD)
|
|
ECO2 mode
|
TBD
|
|
F
|
1.6
|
|
f
|
6.39mm
|
|
Zoom/Focus
|
Manual
|
|
Throw Ratio
|
0.48:1
|
|
Screen size
|
50-120 inch
|
Noise
|
Noise(dB)
|
TGT:
36dB(Normal) 26dB(ECO1) |
Uniformity
|
Uniformity(Actual Min)
-ISO21118 |
80%
|
AR
|
Aspect Ratio
|
Native:16:10 Compatible: 4:3/16:9
|

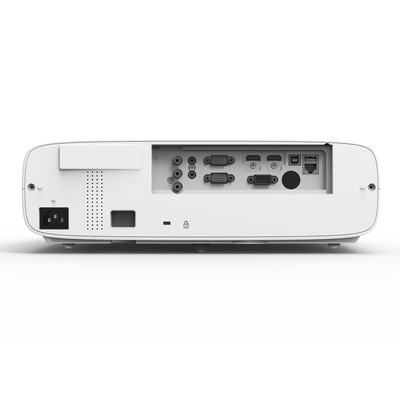

Terminal(I/O port)
|
|
|
Input
|
VGA
|
*1
|
|
HDMl
|
*2
|
|
Video
|
*1
|
|
Audio in
(mini jack,3.5mm) |
*1
|
|
Audio in (RCA×2)
|
*1
|
|
USB-A
|
*1
|
|
USB-B
|
*1(Display)
|
|
RJ45
|
*1(Display)
|
Output
|
VGA
|
*1
|
|
Audio out
(mini-jack,3.5mm) |
*1
|
Control
|
RS232
|
*1
|
|
RJ45
|
*1 (Control)
|
|
USB-B
|
*1
|
|
LAN
|
*1
|
General Spec
|
|
|
Audio
|
Speaker
|
16W*1
|
Dust filter
|
|
W/Filter
|
Filter Life time
|
|
7300h(TBD)
|
Power Consumption
|
Power Requeirements
|
100~240V@ 50/60Hz
|
Other Functions
|
|
|
Keystone
|
Keystone Correction
(Lens@center) |
V: ±15° H:±15°
4 corner |
OSD
|
Languages
|
26
|
Others
|
360° projection
|
Yes
|
|
Wireless display
(Optional function) |
SmartPhone: Android:Install APK for Android
iphone: Airplay function PC: Support WiFi Display@Windows&MAC system through dongle |
Dimension&Weight
|
|
|
|
MAX Dimensions
(WxHxD mm) |
390*315*141;
|
|
Net. Weight (KG)
|
~7.5KG
|
|
Packaging Box Dimensions
(WxHxD mm) |
510*420*260
|
|
Gross. Weight (KG)
|
~8.5KG
|
|
MAX Dimensions
(WxDxH mm) |
390*294*128
|
|
Net. Weight (KG)
|
5Kg
|
|
Packaging Box Dimensions
(WxDxH mm) |
492*443*239
|
|
Gross. Weight (KG)
|
~6.5Kg
|
