Product Details:
|
Zoom Ratio: | 1.2X Zoom | Light Source: | Laser |
---|---|---|---|
Lens Vendor: | RICOH Lens | Light Source Life Time: | 30000H |
Noise(dB): | 28dB | Speaker: | 16W |
Highlight: | 3lcd Laser Projector For School,Office Smart 3lcd Laser Projector,5000 Lumens Smart 4k Projector |
Key parts
|
|
|
|
Panel
|
3x0.63” with MLA
|
|
Zoom Ratio
|
1.2X Zoom
|
|
Light source
|
Laser
|
Brightness
|
|
|
ISO21118
|
Brightness --MKT
|
5000
|
|
Brightness --TYP
|
4500
|
|
Brightness --MIN
|
4000
|
Overall Spec
|
|
|
Panel
|
Display Panel
|
3x0.63” with MLA
|
|
Display Technology
|
Liquid Crystal Display
|
|
Native Resolution
|
XGA (1024 x 768)
|
Light source Life time
|
FullNormal/Normal mode
|
20000hrs
|
|
ECO1 mode
|
30000hrs
|
|
ECO2 mode
|
30000hrs
|
Projection Lens
|
Lens Vendor
|
RICOH Lens
|
|
F
|
1.6~1.76
|
|
f
|
19.158~23.018mm
|
|
Zoom/Focus
|
Manual
|
|
Throw Ratio
|
1.48~1.78:1
|
|
Zoom Ratio
|
1.2x optics
|
|
Screen size
|
30-300 inch
|
CR
|
Dynamic Contrast Ratio
(FOFO) |
5000,000:1
|
Noise
|
Noise(dB)
|
37dB(Normal) 30dB(ECO1)
28dB(ECO2) |
Uniformity
|
Uniformity(Actual Min)
-ISO21118 |
80%
|
AR
|
Aspect Ratio
|
Native:4:3
Compatible: 16:9/16:10 |

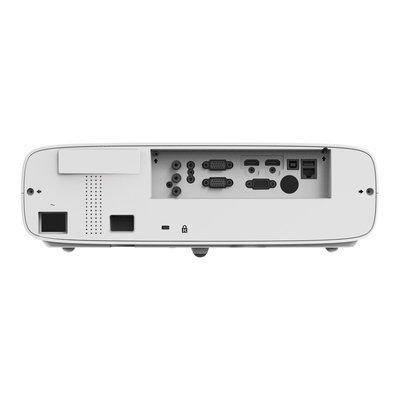

Terminal(I/O port)
|
|
|
Input
|
VGA
|
*1
|
|
HDMl
|
*2
|
|
Video
|
*1
|
|
Audio in
(mini jack,3.5mm) |
*1
|
|
Audio in (RCA×2)
|
*1
|
|
USB-A
|
*1
|
|
USB-B
|
*1(Display)
|
|
RJ45
|
*1(Display)
|
Output
|
VGA
|
*1
|
|
Audio out
|
*1
|
Control
|
RS232
|
*1
|
|
RJ45
|
*1 (Control)
|
General Spec
|
|
|
Audio
|
Speaker
|
16W*1
|
Dust filter
|
|
W/Filter
|
Filter Life time
|
|
7000h
|
Power Consumption
|
Power Requeirements
|
100~240V@ 50/60Hz
|
Other Functions
|
|
|
Keystone
|
Keystone Correction
(Lens@center) |
V: ±30°
H:±30° |
OSD
|
Languages
|
26
|
Others
|
360° projection
|
Yes
|
|
Wireless display
|
SmartPhone:
Android:Install APK for Android |
Dimension&Weight
|
|
|
|
MAX Dimensions
(WxDxH mm) |
390*294*128
|
|
Net. Weight (KG)
|
5Kg
|
|
Packaging Box Dimensions
(WxDxH mm) |
492*443*239
|
|
Gross. Weight (KG)
|
~6.5Kg
|
