Digital Portable Interactive Whiteboard Finger Touch Magnetic Board

Digital Portable Interactive Whiteboard Finger Touch Magnetic Board
Digital Portable Interactive Whiteboard Finger Touch Magnetic Board Digital Portable Interactive Whiteboard Finger Touch Magnetic Board Digital Portable Interactive Whiteboard Finger Touch Magnetic Board Digital Portable Interactive Whiteboard Finger Touch Magnetic Board

Large Image :  Digital Portable Interactive Whiteboard Finger Touch Magnetic Board

Product Details:
Place of Origin: China
Brand Name: FLYIN/OEM/COSTA
Certification: CE,FCC ,ROHS
Model Number: FP4
Payment & Shipping Terms:
Payment Terms: T/T, Western Union, MoneyGram,Alibaba Trade Assurance

Digital Portable Interactive Whiteboard Finger Touch Magnetic Board

Description
Calibration: Automatic(5s) / Manual (25/36 Points) Multi-touch: Ten Points Touch, Write And Eraser Can Do Together.
Latency: <30ms Filter: Software Auto-control, Enhance Stability.
Minimum Active Size: 40 Inch Technology: Laser Image Calibration Technology
High Light:

LICT Portable Interactive Whiteboard System

,

40inch Portable Interactive Whiteboard

,

LICT Digital Interactive Whiteboard

Digital Portable Interactive Whiteboard Finger Touch Magnetic Board



Interactive lcd 95-120 inch smart board Led tv mother board universal smart Led smart tv board main

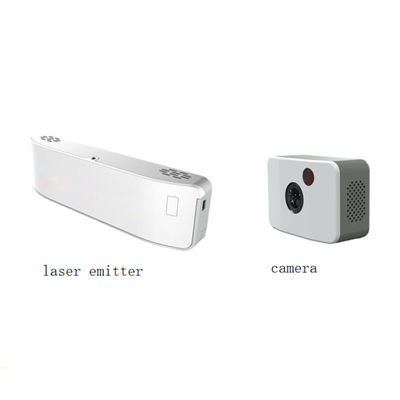

FP4 Board with two parts: emitter and sensor. Emitter can be attached on flat surface. It emits infrared laser curtain on the
surface which is about 1mm thick invisible light and parallel with the projection screen surface, 1-2mm above the screen surface.
When the finger or any non-transparent object touch this virtual surface, the light will be reflected and detected by the sensor.
Computer will figure out the position of the mouse by accurate calculating the reflected light position.



Standard 100 inch

HD 150 inch

HD 150-260 inch

SpecificationFeatures of Laser Image Calibration Technology(LICT)

1. It does not need to open computer or projector to adjust laser curtain,just by gear as referral of ir light.
2. Finger touch,active size up to 100''
3. Small size,portable(Main part includes emitter and sensor,totally weight less than 500g)
4. Auto calibration within 5s,the success rate more than 95%
5. 10 points touch
6. Plenty of Gestures Recognition
7. High cost-effective
8. Min throw ratio:0.15

Function Introduction of FP4

1. High stability. Use the advanced algorithm to avoid the affect of the light.
2. Use full-screen. Projection screen can be very closer to the frame of the whiteboard, it can achieve full screen mode and use
all of available screen.
3. Support plenty of gestures recognition.

FP4 Installation



Photos

Digital Portable Interactive Whiteboard Finger Touch Magnetic Board 0

Digital Portable Interactive Whiteboard Finger Touch Magnetic Board 1

Finger Touch Portable Interactive Whiteboard—FP4 Board

Calibration

Automatic(5s) / Manual (25/36 points)

Gestures Recognition

Gesture Recognition In Education Software:Write with single finger,Erase with palm, Two fingers for move,Two fingers away for zooming out and zooming in,Stay 2s with palm for opening spotlight,Double slap with palm for backing to desktop.

In Windows:Max,Min windows,Zoom in or Zoom out or Rotate the picture, One finger as a scroll bar,Display all the windows,Shift windows.

Multi-touch

Ten points touch, write and eraser can do together.

Latency

<30ms

Filter

Software auto-control, enhance stability.

Minimum Active Size

40 inch

Max Active Size

100inch ( the room with light-proof curtain,excludes double screen )

Technology

Laser Image Calibration Technology

Positional Accuracy

±1 Pixel (Resolution: 4096*4096)

Aspect Ratio

4:3;16:9;16:10

Projection ratio

Ultra short throw:0.15, installation distance:0.35m;

Ultra short throw:0.21, installation distance:0.45m;

Ultra short throw:0.28, installation distance:0.45m;

Short throw:0.34, installation distance:0.54m;

Long throw:0.86, installation distance:1.4m;

Long throw:1.34, installation distance: 2.2m.

(Depends on 80’’ projection screen aspect ratio:4:3)

Laser Beam

2units.

Wave of Laser

940nm

Power

5w

Power of Laser Beam

280mw*2

Power Requirements

3.3V/2A

Signal Refresh Rate

120fps

Connect

The sensor and computer are connected by USB Cable; Emitter and

Sensor are wireless; Emitter just needs power.

Weight

0.5kg

OS Requirement

Windows 7, Windows 8,Windows 10,Android

Software

Calibration software(driver) and GLboard(education software)

Certification

CE, FCC

Warranty

2 years

Package

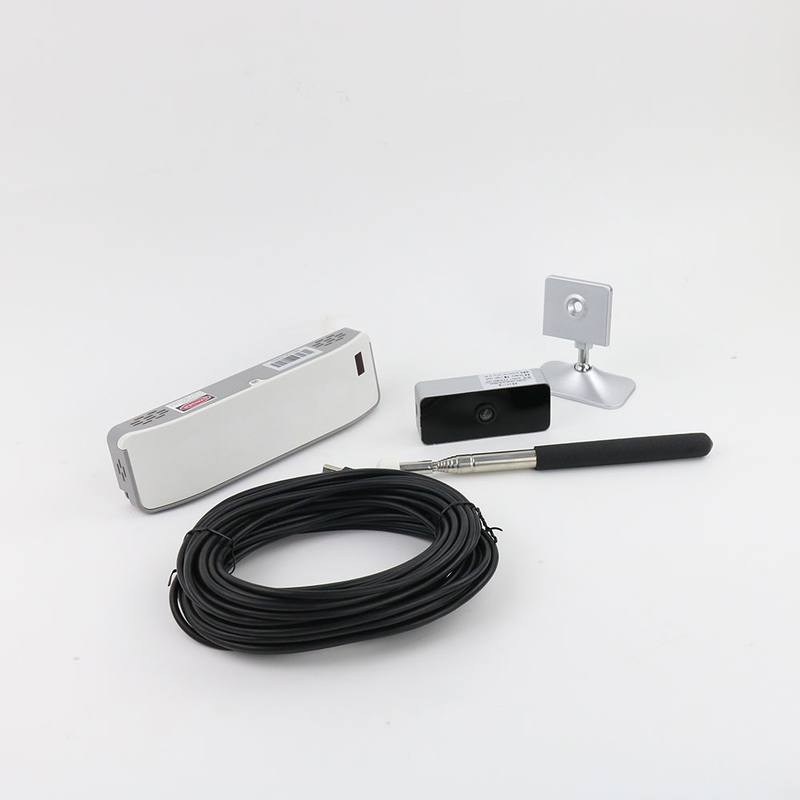

1. Sensor 2.Emitter 3.Mounts 4.USB cable (12m) 5.Pointer 6.Power Adapter 7. Manual
